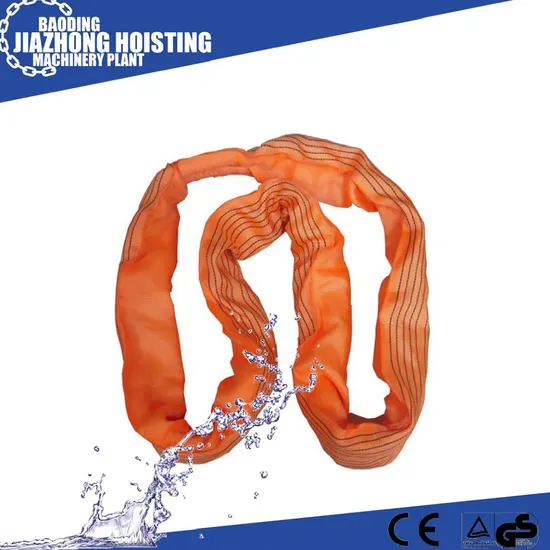

Polyester Double Ply Sling for Heavy Duty Lifting Operations

Product Description

Product Description
Product Introduction
Webbing sling are available in a range of materials and sizes in single leg and endless sling forms. Select the sling to be used and plan the lift taking the following into account: Material - polyester identified by a blue label is resistant to moderate strength acids but is damaged by alkalis; polyamide (Nylon) identified by a green label is virtually immune to alkalis but is damaged by acids; and polypropylene identified by a brown label is little affected by acids or alkalis but is damaged by some solvents, tars and paints and therefore, suitable for appliances where the highest resistance to chemicals other then solvents is required.
Capacity - the sling must be both long enough and strong enough for the load and the slinging method.
Apply the mode factor for the slinging method. For use at temperatures exceeding 80°C or below 0°C refer to the suppliers instructions. For flat woven slings made to BS EN 1492-1:2000 + A1: 2008.

Scope of application:	lifting goods
Material:	100% high tenacity polyester of out sleeve and inner core
Shape:	Flat
Width available :	25-300mm
Length:	As required
Ply:	Single or double ply
Eye information :	Flat eye , Reversed eye , Folded eye 1/2 width from one side , Folded eye 1/2 width from two side , Folded eye 1/3 width
Safety factor:	4:1 5:1 6:1 7:1 8:1
Color :	Color code,also according to customer requirement
Packing:	Shrinkable film,Standard export carton ,
Certification :	ISO9001:2008 , CE

Ranges vary in a chemical environment, in which case the advice of the manufacturer or supplier should be sought.. If the slings are used in multi-leg arrangement the angle formed between the legs should not be less than 30° or greater than 90°. If abrasion, heat generated by friction or cutting from edges or corners are likely select a sling fitted with protective sleeves and/or use suitable packing. Slings with grade 8 fittings and multi-leg slings with grade 8 master links should not be used in acidic conditions.
The unique advantages of webbing sling:
1. Especially suitable for loading round object.
2. The surface of round sling is smooth, does not cause damages to tender objects loaded.
3. Various loading methods, including dragging or pulling loaded object.
4. Various loading methods and load is bear evenlyenable the sling's usage life last longer.
5. High strength/weight ratio.
6. Anti-abrasion and anti-incision protection sleeve can be attached.
7. Has special lable, working load is differentiated by colors according to international standard. 8. Light and soft, can be used in small narrow space.
9. Non-electric conductive, no danger od eletric stroke.
10. Customized producing: we professionally make products according to your special requirements Company Profile
