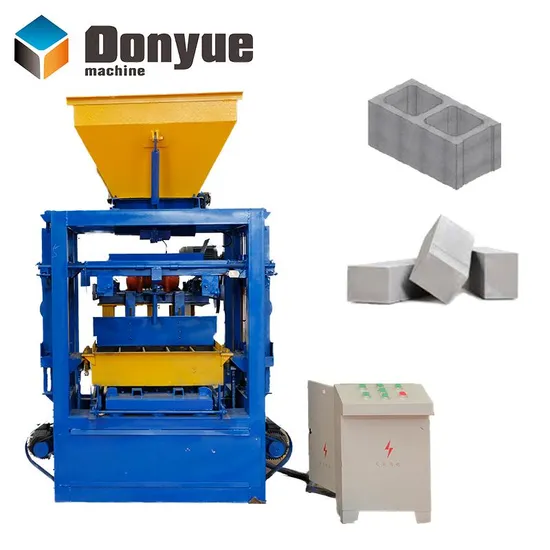

Qt4-24 Easy to Operate Manual Hollow Block Concrete Brick Making Machine

Product Description

1.QT4-24 manual hollow block brick making machine plant main technical parameters

Dimension of Host Machine	1850*1880*2240mm	Host machine power	13.4kw
weight of host machine	1.56T	Vibration force	35.5KN
Capacity	22KVA	Mixer model	JQ350
Water consumption	5-7Ton/day	Pallet size	850*550*30mm
Workshop area	200M2	Voltage	380/415/440V

2.QT4-24 manual hollow block brick making machine plant theoretical Production Capacity

Size(LxWxH)	Pcs/Mould	Pcs/Hour	Pcs/8 Hour
Hollow 400x200x200mm	4	360-450	2880-3600
Hollow 400x150x200mm	5	450-600	3600-4800
Hollow 400x250x200mm	3	270-360	2160-2880
Hollow 400x100x200mm	7	630-840	5040-6720

3. QT4-24 manual hollow block brick making machine plant parts
Host block machine 1 set
JD350 Concrete mixer 1set
Belt conveyor 1set
block mould 1 set
control unit 1 set
Two manual cars 2 sets
Finished Product
Packing & Delivery
Our service
Pre-sales service
* Inquiry and consulting support.
* Machine testing support.
* View our Factory.
After sales service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*one year warranty time
Our factory
why choose Dongyue
· Super High Quality
· Competitive Price
· Big Production Ability
· Fast Delivery
· More than 20 Years' Experience
· Factory directly supply excellent Sale and After-sale Service(not trading company)
Our Certificate
FAQ
1.How can I trust your machines' quality?
Our products has been checked and got the certicification ISO9001 and CE, our machines have been exported to more than100 countries and always have a good reputation of its quality.What's more,every machine will be tested carefully beforeshipment,making sure all the machines operate perfectly when it comes to your hand.
2.What about payment terms?
30% TT advance,70% balance payed before shipment.
3.How long is the guarantee period?
Our warranty is one year.
4.Can you help for installation?
For some model machine need to install,we will send a professional and high levels installation engineer to your site, other sample type machine,we can supply online guide installation or video.

---
