3-Phase Hybrid Stepping Motor Driver CF30522m Stepper Driver for NEMA42 Stepper Motor

Product Description

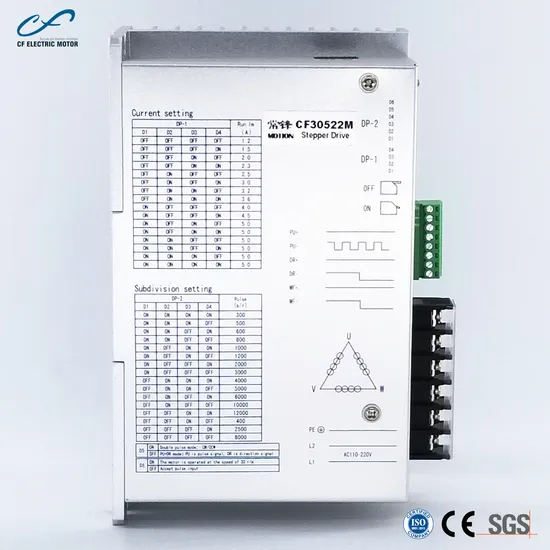

3-Phase Hybrid Stepping Motor Driver CF30522M Stepper Driver
Stepper Driver CF30522M Overview:
CF30522M is a 3-phase hybrid stepping motor drive based on DSP control. It is a new generation of digital stepping motor drive which combines advanced DSP control chip and 3-phase inverter drive module. It uses a similar servo control circuit, which can make the motor running smoothly, almost no vibration and noise. When the motor is at high speed, its torque is much higher than 2 phase and 5-phase hybrid stepping motors. The product is widely used in engraving machine, medium-sized CNC machine tools, computer embroidery machine, packaging machinery and other high resolution, large and medium-sized CNC equipment.
CF30522M Key Features:
1.110 to 220VAC supply voltage
2.Suitable for 3-phase, 3 and 6 leads hybrid stepping motors, with NEMA size23 to 42
3.Output current selectable from 1.2~5.0A
4.Current reduction by 50% automatically, when motor standstill mode is enabled
5.Optical isolation signal input / output
6.Positioning accuracy is up to 12,000 steps / turn
7.Over Voltage, Coil to Coil and Coil to ground short circuit protection
8.Pulse Input Frequency 0~200KHz
9.The phase memory function (Note: When the drive stops for more than 3 seconds, it
will automatically memorize the motor phase then re-energizes. When the WF signal
goes from low to high, the drive will automatically recover the motor phase).
Stepper Driver Wiring, CF30522M Size Diagram:
Packing:Hard cardboard or wooden box with foam inside.
Shipping:Normally the delivery time is within 10 days according to customer's choice or ship by the best express company to the destination.
Delivery:1.with over 17 years of manufacturing experience, any type of customizing is available.2.with perfect service system, we can provide you with first class pre and after sale service.3.we have enough storage of each type of products, with first class packaging and shipping, make sure accurate delivery.4.professional sales consultants give you all answers about our proucts.
Certificates:
FAQ:
Question1: What is your service time:
Answer: 24 hours online service. Email will be replied within 12 hours.
Question2: What about your products' warranty?
Answer: 1 year. For sea orders, the warranty is 15 months.
Question3: Do you have any certificate?
Answer: Yes we have. Our factory passed ISO9001 and SGS verified. All motors have been approved by CE.
Question4: Do you offer ODM and OEM Service?
Answer: Yes. ODM products according to customized design and specification as well as OEM products.
Question5: What is the delivery time?
Answer: For samples, 10-30 days according to the differnet produced difficulty. For bulk, normally 20-30 days. For customized order, the delivery can be negotiated.

---
