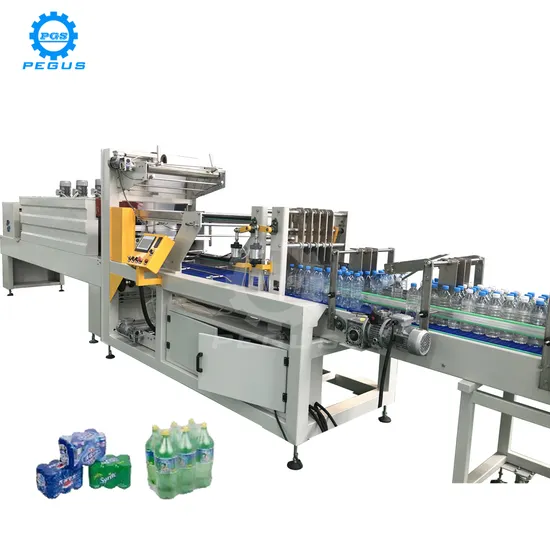

High Speed Linear Type PE Film Shrink Wrapping Machine Automatic Bottle Packing Machine Cans Packaging Machine

Product Description

Product Description
can match 28000 bottles filling production line
Main Technical parameters of the machine Facility model: ZMBJ-350A type
Facility overall size: :L14000×W1100×H2100mm
Facility overall size: Main equipment:3200×1100×2100mm
Shrink tunnel :4000×1000×1840mm
Conveyor:4800×1080×920mm
Wrappage max size:L420×W300×H350mm
shrinkage film material: PE
shrinkage film thickenss:0.08mm
thermo shrinkage tunnel max temperature: 160 - 260° adjust at will
max output per minute: 18-20 bag
facility power:30Kw
actual power:28Kw/h
pressure requirement: 380V/50-60HZ
facility weight: 2500
air pressure: 0.6-0.8mpa
working noise:≤65db
import bottle convey belt width: 620mm
fan:1.1Kw 3set 380V, 60W 6set 380V
Product instruction
frequency converter speed adjust,two segment convey device.
Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.
Proximity switch control film length
Touch screen, PLC system greatly increase facility movement reliability.
Three-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
Super big wind-volume cooling system, ensure quickly get into shape .
Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
Frequency limitless speed adjust convey belt frame.
convey belt height can make according client requirement, adjust range:±100mm
Wing stainless steel heating system, endurance
Meet with product instant stop requirement product-bearing rack device ensure production line consistency.
Product Parameters

no	Name		specification	number	brand
1	board production component
2	Plant metal component
3	pneumatic component			1	Taiwan Airtec
4	Electric controlling component and accessory
	Photoelectric switch			1	South Korea Autonics
	Proximity switch			4	South Korea Autonics
	PLC			1	SIEMENS
	Touch screen			1	SIEMENS
	Frequency converter			2	Taiwan Telta
	AC contactor			9	France Schneider
	Mid-relay			12	OMRON
