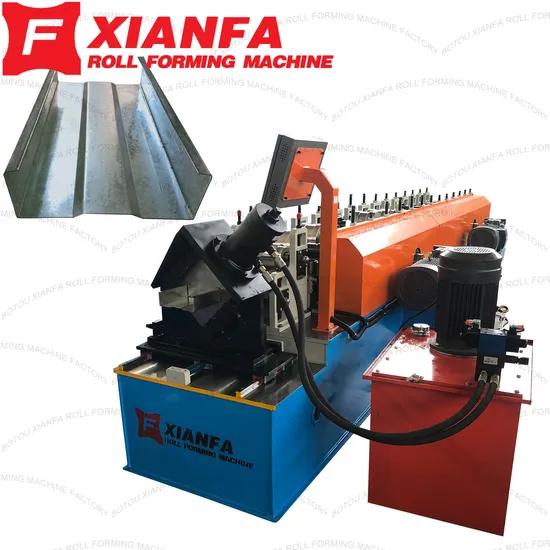

Light Guage Metal Stud and Truss Roll Forming Machine C Channel Forming Machine

Product Description

Product Description
Application:
A metal C channel, also known as a C-section or C-beam, is a structural component with a C-shaped cross-section. It is widely used in construction and manufacturing due to its strength and versatility. A metal C channel machine is typically used for producing C-shaped metal channels, which are structural components commonly used in construction, manufacturing, and various engineering applications. Product Parameters

No
1	Suitable Material	GI PPGI
3	Total power	7.5+7.5+7.5+1.5KW
4	Thickness of raw material	1.5mm
5	Rows of rollers	14Rows
6	Productivity	0-40m/min
7	Diameter of shaft	60mm
8	Voltage	220V 60Hz 3phases or 380V 50HZ 3phases or Customized

The Chart of Process Flow
Components and Technical Specification

No		Technical Specification
1	Manuel Uncoiler	Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:3T Inner diameter: 480-520mm
2	Feeding Flatform	Feeding Platform,Ensure smooth& precise material feed.steel plate platform, two pitching rollers, position stopping block. The coil is guided in the correct position and passed to the roll forming
3	Main Roll Forming Machine	Material of rollers:CR12, The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
4	Hydraulic System	Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.Supplies the initial power to the cutter through a closed oil tank. It is off without cutting, which can save the power.
5	Computer Control Cabinet	Function The whole line is controlled by Delta PLC and touch screen operation. Frequency converter: Delta communication module, it is easy for operation. The technical data and system parameter can be set by touch operation. Length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
6	Shearing Mechanism	It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment
7	Output Table	It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. Quantity:1set

Company Profile
We are a professional manufacturer of cold roll forming machine. Our main products are metal roof and wall panels roll forming machine, double layer roll forming machine, ridge cap making machine, steel purlin machine, gutter/downpipe machine, metal stud and truss forming machine, steel floor deck machine, rolling shutter door machine, slitting line, bending and shearing machine and so on. And we have passed European CE security certificate.
Our machines have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions' customers. We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request.
Packaging & Shipping
We have professional workers and special loading equipment and tools to provide customers with packing and loading services, ensuring that the machines are not damaged during transportation and that customers receive satisfactory machines.
If you need our products, please contact me. We believe that our cooperation will create bright future.

---
