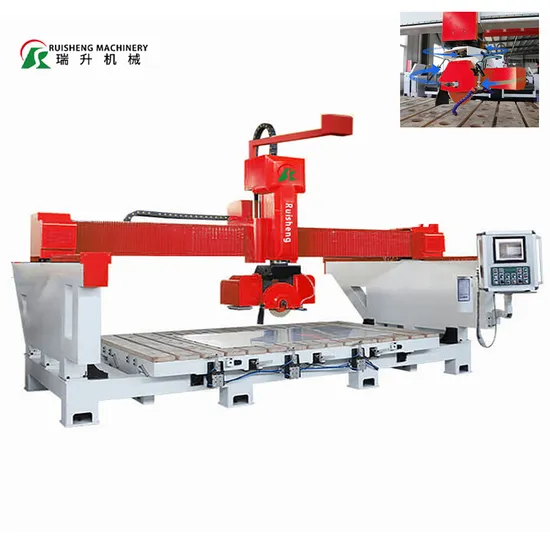

Five Axis Machining Center for Granite Marble Cutting Stone CNC Router

Product Description

Product Description
5 Axis CNC Bridge Saw Machine uses Italian CNC control system to cutting high-quality, precise and efficient fabrication of stone, granite, marble, and engineered stone materials.
5 axis milling machine versatility, it can handle straight cutting, mitering cutting, hole drilling, sink cutting, profiling cutting, round cutting, arc cutting, and even straight and un-straight L shape cutting.

Advantage
1. Cnc Bridge Saw can easily achieve any chamfering or cutting at any angle or direction that you desire, thanks to our blade that can rotate a full 360 degrees and tilt up to 90 degrees.
2.Working platform can tilt 85 degrees, easy for slabs loading.
3.Easy for loading, unloading and installation due to monoblock structure with size suitable for container.
4.Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
5.Photograohing camera equipped. Helps for slab positioning and typesetting. Save time and reduce the waste of processing.
6.Blade Prosetting Unit(Optional) Automatically measuring blade diameter and diamond tool
7.Slab Thickness Detector(Optional) Automatically measuring blade diameter and diamond tool
8.Vacuum lifter equipped(optional). Easy moving slabs for cutting and processing.
Product Parameters

	RS-CNC450	RS-CNC 600	RS-CNC700
Max disc diameter (mm)	350-450	400-600	450-700
Vertical Z stroke (mm)	300	500	500
Main motor rotation range	+360°	+360°	+360°
Main motor tilting range	0~90°	0~90°	0~90°
Main motor rotation speed (r/min)	0-6000	0-6000	0-6000
Power of main motor (kW)	15	18.5	22
Table dimensions (mm)	3200x2000	3200x2000	3200x2000
Workbench fliping angle()	85°	85°	85°
Water consumption (m3/h)	3	3	3
Total power (kW)	27	31	34
Dimension(LxWxH) (mm)	5800*3400*3900 (Including camera)	5800*3400*3900 (Including camera)
Gross weight(kg)	5500	5700	6200

After Sales Service
1. Lifetime technology maintenance in free and spare parts supply.
2.Spare parts supply in free due to our defects within 12 months' warranty time and at cost out of 12 months
3.Training how to instal the machine, training how to use the machine.
4.Free training for installation, operation and maintaince
5.Technical support all working days
6.English version 'instruction books', "Operation Manual" will be offered
7.More than 20+years experience on equipment.
