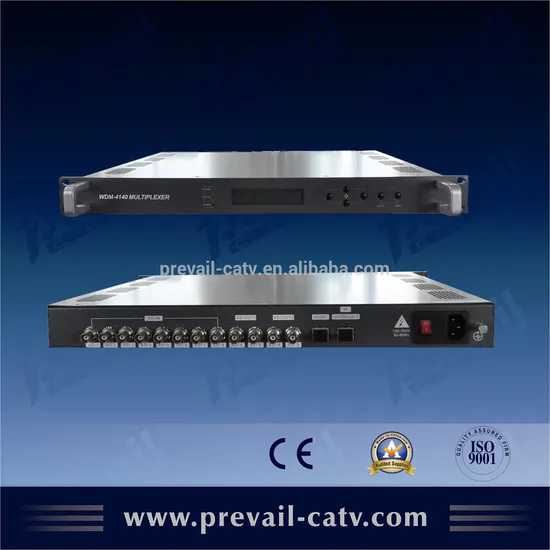

CATV Digital TV Cable TV Multiplexer (WDM-4140, with IP output)

Product Description

Multiplexer Features:
1.Compatible with ISO13818 and EN50083-9

2.Up to eight DVB-ASI (SPTS or MPTS)

3.UP to 108Mbps bit rate for each DVB-ASI input (cover both data packets and data burst transmission format)

4.2X1(one group) or 2X2 (two groups) independent DVB-ASI ,output with continuous adjustable output bit rate
range from 0Mbps to 108Mbps (1kb step)

5.10/100/1000Mbps Auto-Negotiation IP output (optional)

6.Zero jitter on Gigabit output

7.PSI/SI tables regeneration,rank the programs by Service_ID (program_number) or Logical Mapping

8.PID filtering and re-mapping,PCR correction

9.Local keyboard control and LCD display or access via Ethernet link

10.TS packet format input automatic detection and output configurable(188 or 204 bytes)

11.Real-time statistics of output TS bit

---
