Auto Parts Car Parts Auto Industry High Efficiency Laser Cleaning Machinery 100W 200W 500W

Product Description

Auto parts car parts auto industry high efficiency laser cleaning machinery 100w 200w 500w

Product Application
Unique self-developed spiral cleaning mode. Spiral series, scanning length and width can be set according to customer's demands, effectively avoiding the zebra crossing caused by traditional laser cleaning.
High cleaning efficiency, uniform cleaning surface, no damage to substrate of components.
Professional laser cleaning optical design, high damage threshold of scanning mirrors, high beam transmittance and large focus depth of F-theta lens, can meet long-time working of high-power laser cleaning.
Special custom laser and galvo scanner head, high cleaning speed, to meet various high-level laser cleaning application demands.

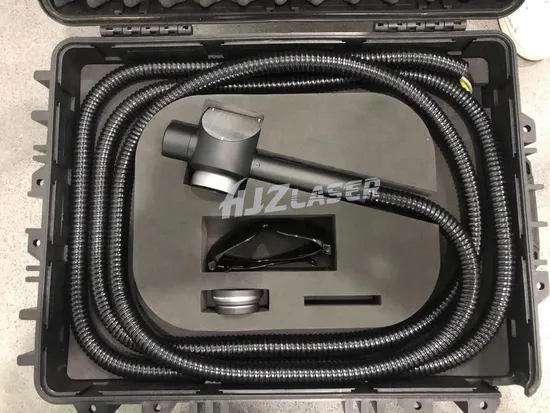

Simple structure of hand-held cleaning head, light weight, ergonomic design and easy to operate.
Can match with various types of laser, greatly improve the applicable range of this system.
Machine Parameters

Laser source	Raycus fiber laser
Laser power	50W/100W/200W/300W/500W
Supply voltage	Single-phase 220V±10%, 50/60Hz AC
Machine power consumption	2500W(within water chiller)
Setting up environment	Flat, no vibration, no impact
Working temperature	0ºC~40ºC
Working humidity	≤80%
Average laser power	≥200 W
Power range (%)	10-100(adjustment )
Repeat frequency (KHz)	10-50(adjustment)
Cleaning efficiency (m2/h)	12
Focal length (mm)	210/160 changeable
Cooling mode	Water cooling
Size	1100mm×700mm×1150mm
Weight	270Kg
Scanning width	10-80mm
Mobile mode	Handheld

Main Features of Laser cleaning machine
1)No damage to the base of the material due to the no-touch surface cleaning performance.
2)Precise cleaning technic for the specific area in a selected area.
3)No need of chemistry or other added supplies.
4)Easy to be operated, can be hand-held or auto-cleaned by installing a robotic arm.
5)Small cleaning time consumption and comes with a high quality finishing result.
6)Stable and impacted integrated design which results to no extra maintenance.
Packaging & Shipping
1. HJZ CNC machine and accessories are covered by plastic sheet first.
2. Then the whole machine is packed by plywood case used for export.
3. HJZ CNC machine can be delivered by sea, by train, or by plane depending on customers.

---
