Customized Liquid Propane Gas Tanker Trailer 40 M3 50 M3 60 LPG Tank Truck Trailer

Product Description

Customized Liquid Propane Gas Tanker Trailer
40 m3 50 m3 60 LPG Tank Truck Trailer
Liquefied gas storage tanks are specialized products for the storage of liquefied petroleum gas and belong to special equipment, three types of pressure vessels, Q345R materials, after flaw detection, water pressure pressure test, technical supervision bureau on-site inspection, pressure vessel inspection certificate, external rust spray paint, etc. The process is completed.
The X-ray non-destructive testing and magnetic particle inspection of the welded joints, welds, the heads of the cans, and the geometrical positions of the pressure elements are strictly examined. The test of the product's tightness, pressure resistance, and all technical indicators that can affect the safe operation of the product.
Specification

Factory Direct Sell Heavy Duty Two or Tri axle LPG Tank Trailer 40 cbm ~ 60 cbm LPG transport trailer Opting ASME standard LPG Tanker Trailer for propane As below for 60 m3 model for reference
Tare Weight	11500KGS
Pay Load	25000KGS
Overall Length	11400mm
Overall Width	2480mm

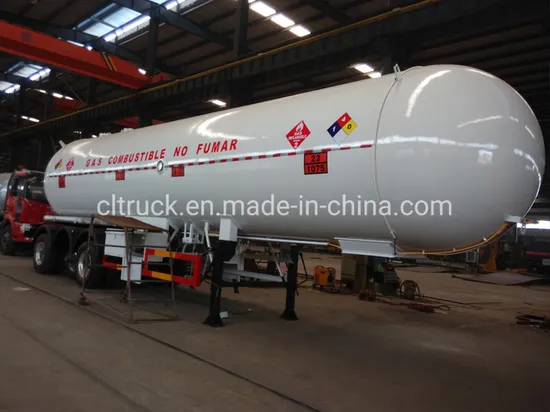

Photo for reference, finial product can be made according to exact requirements
Tank
Transporting Media		Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane
Shape		Round Shape
Total Volume(m3)		60 CBM 60 m3 60000 Liters
Tanker Body Steel Sheet		Q345R/12 mm
End plate		Q345R/14 mm, by punching
Parts for Tank
Manhole cover		3 sets of 500mm/Q345R manhole fixed on top of Tank, with breather valve
Unloading valve		2-3 sets of DN80 fixed at button of Tank
Pipeline at button of tank		4"seamless steel tube/Q345
Labeling system		Oil Type Indication
Anti-static electricity system		pulling, wire carrier, sheet copper (6 sheet-standard layout)
Other Parts
Ladder		1 unit at front of Tank
Guard on top of Tank		Zinc galvanized -guard-net
Oil hose box		Circular single hole tube, 1 unit on each side
Oil hose		2 unit, 3" x 6m size in black rubber
Side guard		cross bar-structure
Rear button guard		Fixed type
Work tank deck		Box type
Fire extinguisher box		2 unit at the back of each side
Mud guard		Steel structure in trapezoid form
Lights and wire		24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
Chassis
Main Beams		Heavy duty and extra durability designed; Opting for high tensile steel Q345R,welded by automatic Submerged-Arc processes
Axle		3 axle
		BPW brand FUWA brand
Landing Gear		JOST Two-speed, manual operating, heavy duty landing gear
King Pin		JOST 2"standard bolt-in king pin
Suspension		German design mechanical suspension
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim		8.25R22.5 wheel rim
Tire		11R22.5 tubeless tire with one spare tire
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final pain

We produce the LPG tank , LPG tank trailer, LPG trucks, LPG skid station, which could be used for loading propane gas, methyl ether gas, isobutane gas, and so on, also include the liquid Ammonia.
Currently we produce the LPG tank, LPG gas storage tank from 5000 liter to 200000 liter.
LPG tank trailer, LPG mobile trailer, from 30000 liter to 60000 liter.
LPG truck, LPG mobile dispener truck, from 5000 liter to 35000 liter.
1)lpg bobtail capacity
5 cbm , 10 cbm, 15 cbm. 20 cbm, 25 cbm, 30 cbm, 35 cbm, 50 cbm, 60 cbm, 80 cbm, 100 cbm, 120 cbm, 150 cbm, 180 cbm, 200 cbm.
2)lpg bobtail material
Q345R Q370R SA516
3)lpg bobtail production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
4)Main parts of lpg bobtail
pump, motor, flow meter, lpg dispenser
LPG Products Design , Devices

Details
Company information
Overseas partner
Packaging&Shipping
Our advantage: Competitive Price and Excellent Quality More than 10 years' experience as a manufacturer CCC,ISO,BV ASME certification Perfect after-sale service Customized products available with us Export covering More than 50 countries and regions 300 kinds of trucks and trailers 100 Senior welder and 15 senior engineers for your service Good cooperation with 30% regular customers Annual production value topped 1500,000,000 RMB (240,000,000 US dollars) per yearOur Mr. Zenger (Sales Manager) Our mission: Best supplier and munafcturer of trucks in China! History: Chengli Special Automobile Co., Ltd has embarked on manufacturing and supplying of 300 kinds of trucks and trailers,especially for lpg tanks throughout China with expertise and devote from 2004. Based on a team of deoted workers and skillful engineers and also diligent staffs,it has emergenced into the top 3 special vehicle manufacturer in central China. All achived is closedly related with our skillful worker, devoted staffs,dear clients who have been always trusted and supported us.

---
