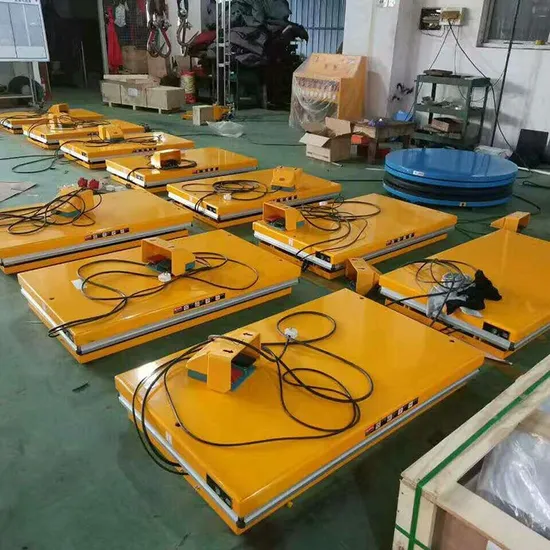

Heavy Duty Large Platform Electric Hydraulic Lifting Table/Electric Lift Table

US$106.00-180.00 1 Piece (MOQ)

Basic Info.

Model NO.
TL
Application
Workshop Crane, Shipboard Crane, Warehouse Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Stationary
Driven Type
Hydraulic
Running Mode
Stationary
Feature
Insulating
Certification
CE
Transport Package
Wooden Box
Specification
Manual Pallet Truck
Trademark
CHEESON
Origin
China
HS Code
8427109000
Production Capacity
5000sets/Year

Product Description

model rated load Minimum/maximum height
of mesa		 Mesa dimension base size Hoisting time power supply parameters net weight
kg mm mm mm s V/Hz kg
MJ-A1001 1000 205/990 820×1300 640×1240 20-25 380/50 160
MJ-A1002 1000 205/990 1000×1600 640×1240 20-25 380/50 186
MJ-A1003 1000 240/1300 850×1700 640×1580 30-35 380/50 200
MJ-A1004 1000 240/1300 1000×1700 640×1580 30-35 380/50 210
MJ-A1005 1000 240/1300 850×2000 640×1580 30-35 380/50 212
MJ-A1006 1000 240/1300 1000×2000 640×1580 30-35 380/50 223
MJ-A2001 2000 230/1000 850×1300 785×1220 20-25 380/50 235
MJ-A2002 2000 230/1000 1000×1600 785×1220 20-25 380/50 268
MJ-A2003 2000 250/1300 850×1700 785×1600 25-35 380/50 289
MJ-A2004 2000 250/1300 1000×1700 785×1600 25-35 380/50 300
MJ-A2005 2000 250/1300 850×2000 785×1600 25-35 380/50 300
MJ-A2006 2000 250/1300 1000×2000 785×1600 25-35 380/50 315
MJ-A4001 4000 240/1050 1200×1700 900×1600 30-40 380/50 375
MJ-A4002 4000 240/1050 1200×2000 900×1600 30-40 380/50 405
MJ-A4003 4000 300/1400 1000×2000 900×2000 45-50 380/50 470
MJ-A4004 4000 300/1400 1200×2000 900×2000 45-50 380/50 490
MJ-A4005 4000 300/1400 1000×2200 900×2000 45-50 380/50 480
MJ-A4006 4000 300/1400 1200×2200 900×2000 45-50 380/50 505
