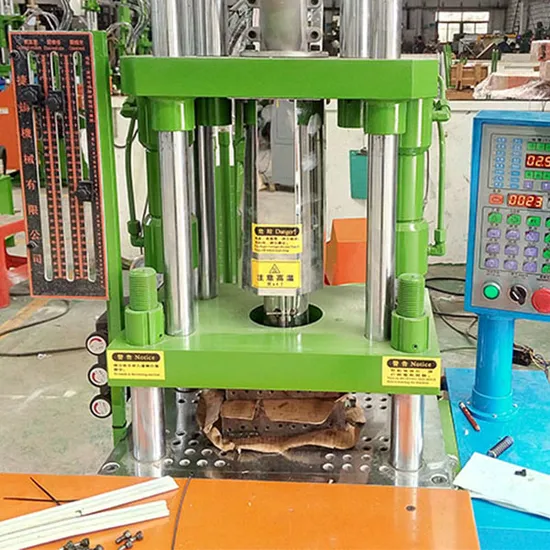

Factory Supply China Made Silicone Injection Moulding Machine

Product Description

Dongguan JieYang Machinery Co., Ltd established on 2010, located in Xincheng Industrial Zone of Hengli Town. Our factory is about 2,000 square meters. We have more than 20 years manufacturing experiences of vertical plastic injection molding machines with precision machining equipment & professional team. We do our best to provide the solution with competitive cost to our customers and it is recognized by all our customers.
We warmly welcome you to visit our factory, we are waiting for you at JieYang!
Our Goal: "Customer Satisfaction, Continual Improvement & Innovative Service" is the driving force for our company to moving forwards. We will devote every efforts to do our best level.
1. Features of Factory Supply China Made Silicone Injection Moulding Machine:
1. Ergonomic operations thanks to wide range of different clamping systems;
2. Short cycle times and high productivity thanks to machine versions with various rotary tables and sliding tables;
3. Servo-electric rotary tables for precise and reliable processing of delicate inserts;
4. Simple integration into automated production lines;
5. Particularly space-saving, compact design.
2. Parameter of vertical plastic injection molding machine:

JY-160S2/JY-200S2 Technique specification
Model		Units	JY-160ST		JY-200ST
Injection System	Screw Diameter	mm	Φ26	Φ28	Φ28	Φ30
	Injection Pressure	Kg/cm2	1183	1019	1019	896
	Theoretical Shot volume	cm3	55.7	64.6	64.6	74
	Max. Shot Weight(P.S)	g/Oz	50/1.7	58/2.0	64.6/58	74/67
	Injection Rate	mm	105		105
	Max.Screw speed	rpm	0-215		0-200
	Temperature Control	ZONE	2		2
Clamping System	Clamping Force	T	15		30
	Platen Size	mm	450*280		480*310
	Distance Between Tie Bare	mm	265		285
	Min Mold Height	mm	100/25		100/30
	Opening Stroke	mm	190		180
	Max. Open Daylight	mm	290/215		280/30
	Ejector Force	T	1.3		1.3
	Ejector stroke	mm	35		35
Hydraulic System	Max. Hydraulic Pressure	Kg/cm2	140		140
	Pump Output	L	17.5		29.5
	Pump Motor Power	Kw	2.2/3HP		3.75/5HP
	Barrel Heating Power	Kw	1.8		1.8
	Total Wattage	Kw	4.2		5.5
Others	Machine Dimensions (L*W*H)	m	1.35*0.92*2.06		1.4*.90*2.37
	Shipping Measurement (L*W*H)	m	1.6*1.0*2.23		1.7*1.1*2.23
	Machine Weight	T	0.85		1.0
	Shipping Weight	T	1.0		1.3

3. Application:
Vertical injection machine have the advantage of low noise, low energy consumption, high efficiency and long life time, it's widely apply to produce various terminal blocks, connectors, cables,auto parts, Plug ,etc.
4. Packing & Shipping:
1. Before shipping,we will check and test the machine carfully.
2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days.
3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us
5. RFQ:
Q1: Are you a trading company or a manufactory?
A1: We own a factory ourselves, and we can assure the quality we manufactured.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year
warranty of the spareparts, free of charge.
Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.
6. Video of Vertical Injection Molding Machine
1. https://youtu.be/dgv7HaKg1Ro (15, 30 ton)
2. https://youtu.be/G348PTJSlK4 (standard,35, 45, 55, 85, 120 ton)
3. https://youtu.be/nLU_Atu1vTA (PC, 35, 45, 55, 85, 120 ton)
4. https://youtu.be/fYOD2omwP7Q (zipper making machine)
5. https://youtu.be/mIHq5qQAWbg (rotary table injection molding machine)
6. https://youtu.be/GvvR_LNdRmk (Single Sliding Vertical Injection Molding Machine
7. https://youtu.be/v-gU0rQIWnc (Workshop in the night)
8. https://youtu.be/eiecpUPhGP4 (USB Cable Production)
