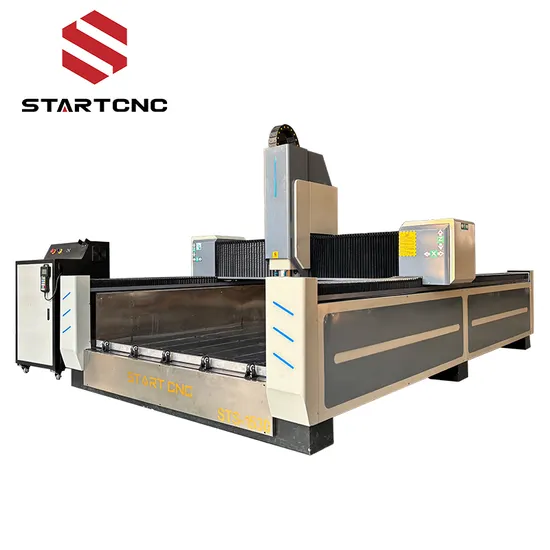

High Quality Metal Engraving Machine Stone CNC Router

Product Description

Product Description

Detailed Photos
Product Parameters

1)-Model:	1530
2)-Structure:	Seamless steel welded
3)-Table:	Aluminumwith t slot. Water tank
4)-XYZ working size:	1500*3000*400mm
5)-XYZ transmission:	XY axis is helical rack and gear,Z axis Ball Screw
6)-XYZ guide rail:	Famous Taiwan Hiwin Line 20mm Square guide way
7)-Spindle:	5.5kw water cooling spindle
8)-Spindle collet:	2 pieces
9)-Inverter:	Well known china Fuling 5.5kw
10)-Motor:	stepper motors
11)-Driver:	860H driver
12)-Controller system:	DSP A11 control system
13)-Voltage:	220v/ 380v, 50/60HZ
14)-Software:	Artcam
15)-Router bits:	10pcs for free
16)-Lubrication:	YES
17)-Delivery time:	18-20 working days
18)-Packing weight:	1500KG

Certifications

Packaging & Shipping
Company Profile
After Sales Service
FAQ

1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we have long term cooperation with each other and have closely relationship with each other.so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of one shift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are not included.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.
4.Our Services?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)After sale Service: experienced and knowledgeable team of technical support, provide engineer oversea service.

---
