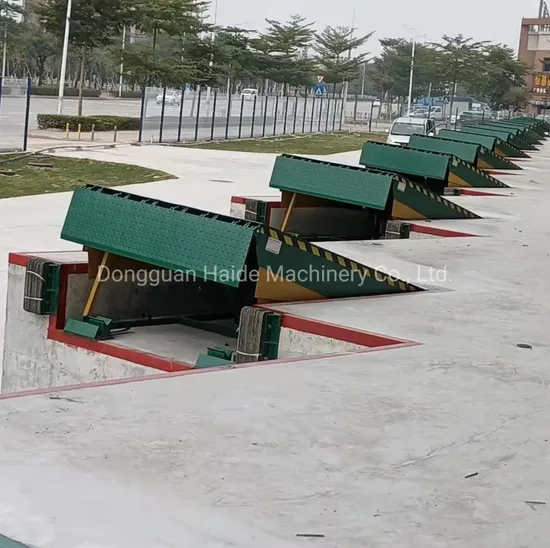

CE-Approved 10ton/15ton/20ton 6′ X8′ Hydraulic Dock Leveler /Loading Bay

Product Description

CE-Dock Leveler
Equipment Specification(W*L*H): 1830mm*1830mm*490mm
Pit Dimension(W*L*H): 1870mm*1680mm*500mm
Dynamic Capacity: 10 ton
Adjust range: +300mm/-300mm
Main deck thickness: 8mm
Lip board thickness: 16mm
Power pack: : Italy "Hydr-APP" 0.75 KW 340~415V 3P 50Hz
Oil seal: Japan"NOK"
Color: Main body Red+Safety Black&Orange
Color: Optional
Warranty: 365 days after installation for all, 5 years warranty for the steel structure.
CE No.: DGS12082902
We can manufacture the dock ramp with capacity 10ton up to 25ton.
We can manufacture it as per your any requirements.
The 3-fragment full range toe-guard can prevent the operator from entering into the dock leveler by accident and prevent any damage and casualty to the operator.
Operation process: Push "UP" button, platform begin to rise. When it rise to highest point, push "EXTEND" button, lip extend out. Then press "DOWN" button, platform and lip lower down to rest on the truck box bed. When loading&unloading is over, then press "UP" botton, platform and lip begin to rise. When platform and lip get away from the truck box bed, then press "RETRACTION" button, lip retract. The push "DOWN" button, then dock leveler restore to original stored position.
Two laminated rubber bumper with woven fiber inside can withstand any shock between the truck and dock.
Meets all possible user demand and comply with rules and regulations of European EN1398 standards.

Model	Equipment Specification(W*L*H)mm	Pit Dimension(W*L*H)mm	Capacity	Adjust range	Lip board(W*L*T)
6*6	1830*1830*490	1870*1680*500	10~25T 10T is standard	+300mm/-300mm	1830*400*15
6.5*6	1980*1830*490	2020*1680*500			1980*400*15
7*6	2130*1830*490	2170*1680*500			2130*400*15
6*8	1830*2440*490(590)	1870*2280*500(600)			1830*400*15
6.5*8	1980*2440*490(590)	2020*2280*500(600)			1980*400*15
7*8	2130*2440*490(590)	2170*2280*500(600)			2130*400*15
6*10	1830*3050*490(590)	1870*2880*500(600)		+400mm/-300mm If the height is 590mm: +450mm/-350mm	1830*400*15
6.5*10	1980*3050*490(590)	2020*2880*500(600)			1980*400*15
7*10	2130*3050*490(590)	2170*2880*500(600)			2130*400*15

---
