1bqx Series Tractor Disc Harrow Agricultural Machinery of Light Duty (22PCS)

Product Description

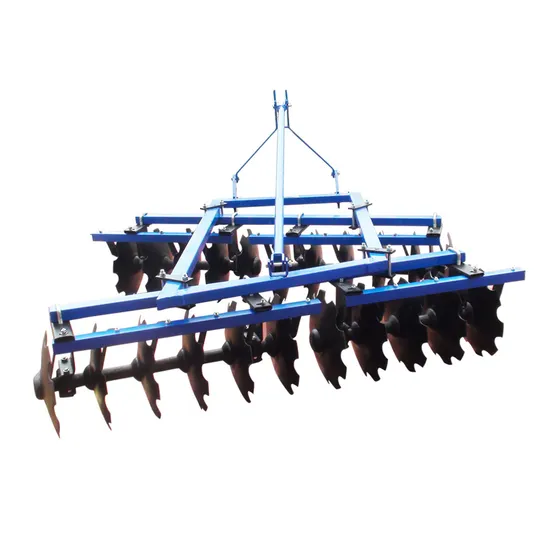

1BQX series tractor disc harrow agricultural machinery of light duty (22pcs):
Product Description
The 1BQX-1.7, 1BQX-2.0 and 1BQX-2.2 light duty disc harrow are matched to 25-45hp tractors, linkage type is three point mounted. They are mainly used for stubble removal before farming, surface hardening breaking, straw chopping and returning to the field, soil crushing after farming, soil leveling and moisture conservation, etc. it can also replace plow for soil ploughing on mature land. After raking, the ground surface is smooth and the soil is loose and broken. It has a strong adaptability to heavy sticky and weedy plots.
The disc harrow absorbs the advantages of the same kind of foreign advanced products. It is designed according to the standard. The whole machine adopts a combined structure, with a square welded pipe integral rigid rake frame as the main body, equipped with a hydraulic take-off and landing transport wheel, a spring leveling mechanism and a special outer spherical surface and inner square hole sealing rolling bearing for disc harrow. It is reasonable in structure, firm and durable, convenient in transportation, small in turning radius, easy to adjust, easy to operate and easy to operate It is easy to maintain and is an advanced disc harrow product in China.
Product Parameters

Model	1BQX-1.7	1BQX-2.0	1BQX-2.2
Working width (mm)	1700	2000	2200
Working depth (mm)	100-140
No. Of disc (pcs)	18	20	22
Dia. Of disc (mm)	460
Weight (kg)	270	380	400
Linkage	Three point mounted
Matched power	25-30	35-40	40-45

Product Advantage
1BQX-1.7: 18pcs disc blades, 1BQX-2.0:20pcs disc blades, 1BQX-2.2: 22pcs disc blades. Linkage: Tractor Three point mounted. Each disc blades has one scraper, it is used to clean dirt and grass. Disc Blades material: 65 Mn spring steel. Disc Diameter x thickness: 460*3mm, hardness: 38-45. Rigid steel frame, the main beam is 50-70 mm ,strong and durable. High Quality square shaft made of quenched and tempered No.45 steel;the size is 28*28 mm. Bearing is covered by sealed bearing seat to protect it from sand, dust etc. Installation Instructions

Frame Installation
Bearing Installation
Scraper Installation
Linkage Type of frame

Packaging & Shipping



FAQ
RFQ:
Q: What's your delivery time? A: Generally, 15-20 days after receipt of deposit, but the specific time depends on order quantity.
Q: What are your terms of package? A: Carton Box.
Q: What is your terms of payment? A: 30% T/T as deposit, 70% before delivery.
Q: WHat are your terms of Trade? A: EXW, FOB, CFR, CIF
Q: Can I get some samples? A: Yes, we are honored to offer you samples.
Q: Do you test all your goods before delivery? A: Yes, we will 100% test before delivery.

---
