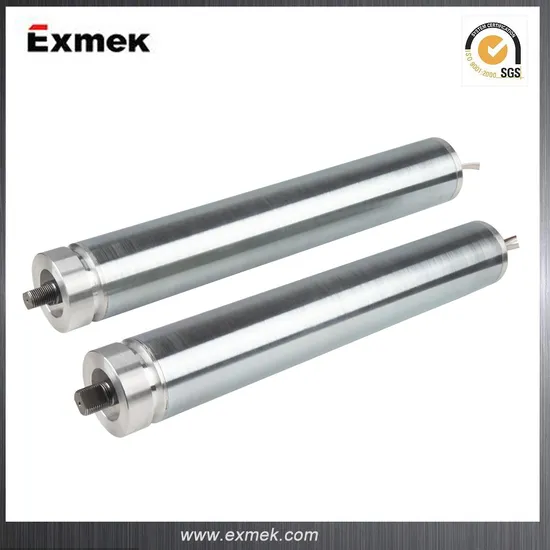

50/67 Frame Cross-Belt Sorter Servo Roller Motor

Product Description

Motor General Information External roto Direct drive Quick response Servo control Inductive encoder Wide speed range Roller length to be customized Driver General Information Used for Servo BLDC roller motor Input voltage: DC48V Rated output power: 400W RS485 communication Encoder feedback S2-25% work duty
Motor Specifications

Model	Voltage	Rated Power	Max.Torque	Speed Range	Linear Speed Range	Max. Current	Encoder Res.	Max. Sorting Weight	Work Duty
	( V )	( W )	( Nm )	( RPM )	( m/s )	( A )	( PPR )	( Kg )
RE050VS100	48	300	4.5	300-800	0.8-2.1	10	2500	25	S2
RE067VS100	48	400	15	300-800	1-2.8	25	2500	45	S2

Driver Specifications

Item	Units	Description	Notes
Power Supply	VDC	48V±5%
Rated Current	A	10
Peak Current	A	25
Rated Power	W	400
Speed Range	RPM	300-800
Speed Control		Communication
Speed Feedback		Hall Sensor+ Encoder (Diff. AqB)	2500PPR
Communication		RS485
I/O Port		Run/Stop, CW/CCW, Sensor
Input Signal		NPN, 5mA
Work Duty		S2-25%	Based on ambient temperature
Operation Ambient Temperature	ºC	0-40
Operation Ambient Humidity		85% Max.	No water drops or rain
Vibration		Frequence≤20Hz: 9.8m/s²; 20Hz≤Frequence≤50Hz: 2m/s²

Motor Mechanical
Driver Characteristic Diagram
Driver Mechanical
Various Customization Optional on mechanical and electric performances!
Company Profile Originally motor division of CMEC WUXI- China National Machinery & Equipment Imp & Exp Wuxi Co.,Ltd., one of TOP 20 stated owned Machinery Group Privately owned Ltd company since 2000: Wuxi Junhong Automation Technology Co. Ltd. Exmek Electric ---Registered Brand Name Business: Design and manufacture of motion control products and components Highly qualified personnel UL, CE, RoHS certification ISO 9001, ISO 14000
Company Capabilities Modern Motor Design and Manufacture Part Set Design and Manufacture Magnetic Design Software-Motorsolver Molding Shipping world wide Why Exmek Electric Open for general discussion and questions Time to market or theatre of operations can be substantially reduced Talented team of engineers providing innovative technical solutions One stop "supplier" and complete sub-system Quality products provided at competitive low cost Ability to ship world wide On time delivery Training at Customer locations Fast service on return and repair results Many repeated customers Applications:
Use for swimming pool, automotive, semiconductor, chemical & medical, industrial automation, power tool, instrument, measuring equipment, office automation, various OEM application.
We are open for general discussion and questions. Contact us now!

---
