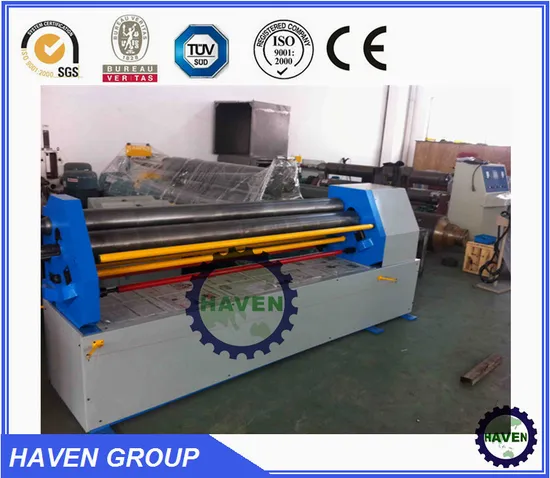

W11F-4X2500 High Quality Standard 3 Rollers Asymmetrical Bending Rolling Machine

Product Description

W11F-4X2500 3 Roller Asymmetrical Bending Rolling Machine with High Quality Standard
Main Features:
- Gear driving system through top roller and bottom roller
- Can do pre-bending and ball type bearing can be suitable for thin steel sheet rolling
- Three rollers in asymmetrical, specially for thin plate bending and pre-bending.
- Machine frame is made with welding quality steel.
- Main electric components are from Siemens brand
- With remote pedal control device, rollers harden treatment
- Top roller fixed, easy operated, Bottom roller can be adjusted up-down by manual
- Side roller adjustment: Small machine by manual; Bigger machine by motor

Model	Max. thick (mm)	Max. width (mm)	Yield Strength (MPa)	Working speed (m/min)	Min. work Diameter (mm)	Top roller diameter (mm)	Bottom roller Diameter (mm)	Side roller diametr (mm)	Main Motor power (Kw)	Side Roller Adjust Motor ( Kw )
W11F-1.5*1300	1.5	1300	245	6	250	80	80	80	1.5	without
W11F-3.0*1300	3	1300	245	8.1	250	125	125	125	1.5	without
W11F-2.0*1600	2	1600	245	8.1	250	125	125	125	1.5	without
W11F-3.0*2000	2	2000	245	8.1	250	125	125	125	2.2	0.75
W11F-2.0*2500	2	2500	245	5.4	250	130	130	130	2.2	0.75
W11F-3.0*2500	3	2500	245	5.4	250	135	135	135	2.2	0.75
W11F-4.0x2500	4	2500	245	4.0	450	145	145	145	3	1
W11F-6.0x2000	6	2000	245	4.0	450	160	160	160	4	1.5

2. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement
3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.

---
