Professional Leaf Grinder Coffee Cocoa Powder Grinder Machine

Product Description

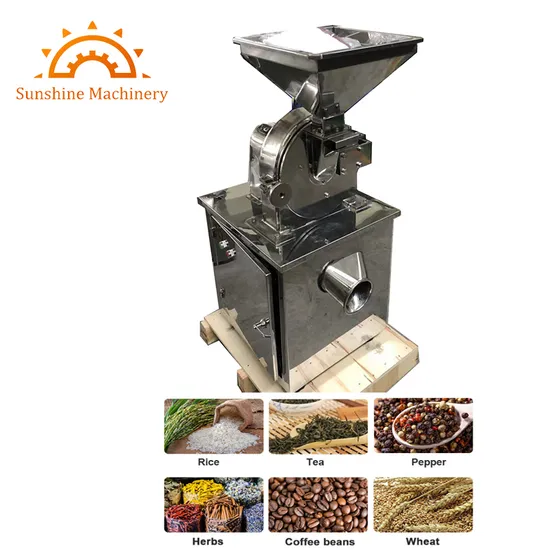

Professional Leaf Grinder Coffee Cocoa Powder Grinder Machine
It is widely used for crushing materials in pharmaceutical, food, and chemical industries.
This machine uses relative movement and between activities chairing and the fixed tooth plate, which makes the material after tooth plate impact, friction, shearing, materials impact each other and get crushed.
Features:

1. Machine according to GMP standard and wholly made of stainless steel.

2. The machine is simple in structure, low energy, easy to clean, is the ideal grinding equipment.

3. To meet the crushing demand slightly below room temperature, water-cooled jacket can be loaded.

4. Complete large and small size, both adaptation and colleges, hospitals, laboratories minicomputers, can produce large line equipment.
Technical Parameters:

Model	Capacity kg/h	Rotation speed rpm	Feed Fineness mm	Output Fineness mesh	Motor kw	Weight kg	Size mm
15B	10-50	6000	6	60-120	2.2	85	550*400*850
20B	60-150	4500	6	20-120	4	180	550*600*1250
30B	100-300	3800	6	20-120	5.5-7.5	250	600*700*1450
40B	160-800	3400	10	20-120	7.5-11	360	800*900*1550
50B	240-1000	3200	12	20-120	11-15	550	850*900*1680
60B	300-1200	2800	12	20-120	15-18.5	680	900*900*1880
80B	400-2000	2000	12	20-120	22-30	850	1100*950*1960
100B	500-3000	1500	15	20-120	30-45	1200	1350*1000*2100

Please provide the follows information before quoting:
1. Which kind of material do you want to grind?
2. What's the fineness of the powder do you need after grinding?
3. How much kg/hour material do you want to grind?
4. What is voltage and frequency of electricity at your local?

---
