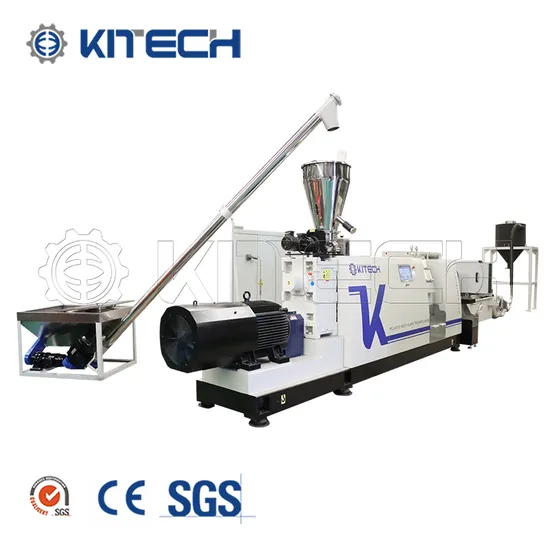

Plastic Recycling Machine for PE/PP/PA/PVC/ABS/PS/PC/Pet Granulator and Pelletizing Recycling Line

US$60,000.00
1 Piece
US$58,000.00
2 Pieces
US$56,000.00
3-4 Pieces
US$54,000.00
5+ Pieces

Basic Info.

Model NO.
KCP/KSP
Raw Material
PP PE
Screw
Single-Screw
Inverter
Inverter
Electromagnetic Heater
Electromagnetic Heater
Automation
Automatic
Computerized
Computerized
Customized
Customized
Certification
CE, ISO9001:2008
Condition
New
Controller
Siemens PLC
Bearing
NSK
Motor Brand
Siemens, Weg
Suitable Material
PP PE Film, PP Woven Bag, PP PE Flake, BOPP
Transport Package
Wooden Pallets
Specification
80-180mm
Trademark
KiTech
Origin
China
HS Code
84772010
Production Capacity
30-50 Sets/ Year

Packaging & Delivery

Package Size
300.00cm * 100.00cm * 200.00cm
Package Gross Weight
1000.000kg

Product Description

KCP series compacting pelletizing system, it is a three in one recycling machine designed for low density plastic articles. It could provide the excellent re-pelletizing and recycling solution for film,raffia, filament, woven bag and nonwoven fabric and other consumed / post soft or rigid plastic.Our pellet making machine has a wide application in PE, PP, CPP, BOPP, PS, EPS, ABS, PA,PLA, PET waste plastic materials recycling field.
Technology Parameter
Technology Parameter
Type
 KCP80
 KCP100
 KCP120
 KCP140
 KCP160
 KCP180
Capacity (kg/h)
 150-250
300-420
400-600
600-750
800-950
1000-1200
Energy consumption (kWh/kg)
 0.2-0.33
0.2-0.33
0.2-0.33
0.2-0.33
0.2-0.33
0.2-0.33
A / Length (mm)
 10,300
10,300
11,400
11,400
14,800
14,800
B / Width (mm)
 6,200
6,200
6,450
6,450
6,850
6,850
C / Height (mm)
 3,500
3,750
3,980
4,250
4,460
4,850
Compactor
 Volume(L)
300
500
800
1000
1200
1400
Motor power(KW)
37-45
55-75
75-90
90-132
132-160
160-185

Extruder
 Screw Diameter (mm)
φ80
φ100
φ120
φ140
φ160
φ180
L/D
30-40
30-40
30-40
30-40
30-40
30-40
Motor power (kW)
55-75
90-110
132-160
160-200
250-315
315-355


Filter
(options)
 Two position plate type
Standard Standard Standard Standard Standard Standard
Two position piston type
Alternative Alternative Alternative Alternative Alternative Alternative
Back flush piston type
Alternative Alternative Alternative Alternative Alternative Alternative
Automatic self-cleaning type
Alternative Alternative Alternative Alternative Alternative Alternative

2nd Extruder
(optional)
 Screw Diameter (mm)
φ100
φ120
φ140
φ160
φ180
φ200
L/D
10-18
10-18
10-18
10-18
10-18
10-18
Motor power (kW)
37-45
45-55
55-75
75-90
90-110
110-160


Downstream
(options)
 Water ring pelletizer
Standard
 Standard
 Standard
 Standard
 Standard
 Standard
Strand pelletizer
Standard Standard
Standard Standard Standard Standard
Auto strand pelletizer
Standard Standard Standard Standard Standard Standard
Underwater pelletizer
Standard Standard Standard Standard Standard Standard
