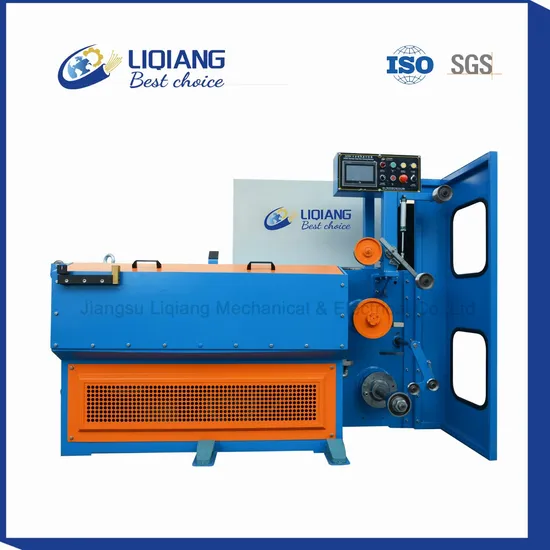

Liqiang 0.10-0.3mm Stainless Steel Wire and Cable Making Machine

Product Description

Liqiang 0.1-0.3mm Multi steel wire drawing machine

Model	24DBX
Quantity of drawing dies	24
Inlet diameter	0.5-1.2mm
Outlet diameter	0.1-0.3mm
Max. Drawing speed	800m/min
Usage	Bare steel wire drawing
Slip ration of main machine	13%
Slip ration of last die	8%
Correction system	Automatically control
Using motor/ main motor	11kw
Annealing method	DC three section annealing
Brake	Pneumatic brake
Colour	As customer's need
Brand	Liqiang or OEM
Voltage	380V or Customized
Operation direction	Right hand machine

This steel drawing machine is suitable for drawing stainless steel wire.
1, Full immersion lubrication system, synchronous belt drive, with constant tension, low noise, high efficiency and other characteristics.
2. Special tool steel material is used for capstan.
3, The equipment adopts PLC control, double motor, double frequency conversion, color touch screen display.
4. Special straightening device is added to the export die, and the finished product wire is conducive to the release and annealing of the following process.
5. Stepper motor is used to arrange wiring, which is adjustable and smooth.
6. The disorderly wire protection device is installed at the pay off place. The disorderly or broken wire can stop by itself.
Liqiang Mechanical & Electrical Co.,Ltd, is a professional wire and cable production manufacture with development design, whole plant planning and technical advice ,manufacture, installation, commissioning and after-sales service in one. Our main products are wire drawing machine, annealing machine, wire bunching machine and other related equipment for bare copper, copper alloy and stainless steel wire, etc.
We believe that perfect high-quality products only come from zero defect production process. Liqiang has adopted the advanced production equipment and technology , scientific & standardized management system and strict testing standards to ensure international advanced level on quality ,structure, performance and appearance. A post-sales service team with versatility and high-efficiency is standing by to provide a full range of services and ensure that the products of your choice are in good working condition all the time. Our products,well trusted and supported ,have been sold throughout China and Southeast Asia, the Middle East , South Africa and other regions.
Liqiang persisted in the principle of " quality wins market, integrity makes for brand" .We make each component with all our mind and energy and to meet multiple requirements all from clients' interests. We hope to create maximum value for the community as well as for clients.
Q: Are you a manufacturer or trade company?A: We are a real wire drawing machine manufacturer, we can support online and offline factory inspoestion anytime.Q:Where is your factory located?A: Our factory is located in Dongtai City, Jiangsu, China. It is not so far from Shanghai airport and Nanjing airport.
If you want to visit our factory, we may pick up you from airport. Q: How many years are your company engaged in the wire drawing machine?A: More than 20 years. We have our own technology develop department and testing department.Q: Can you send your engineer to my country for machine installation, worker training?A: Yes, sure. Our engineers have been to more than 60 countries before. They are very experienced.Q: What's the guarantee time for your machines?A: 12 months since the date of dispatching from our factory.Q: Can you export and supply the customs clearance documents we need?A: We have much experience for exporting. We will arrange all the customs clearances in advance for you.If you are interested in our machines,
please feel free to contact us now,
We will provide you professional solution with reasonable price.

---
