20-1200 Ton Low Bed Factory Professional Semitrailer One Stop Solution Supplier Folding Gooseneck Lowboy Front Load Truck Trailer

Product Description

20-1200 Ton Low Bed Factory Professional Semitrailer One Stop Solution Supplier Folding Gooseneck Lowboy Front Load Trailer
Product Description
Providing supporting and processing on Semi Trailer
low bed trailer
One line two axles low deck trailer
RGN trailer
Gooseneck detachable gooseneck low loader
Folding neck low deck trailer
Extendable dropdeck trailer
CKD/SKD situation Available
OEM/ODM acceptable
Customized your best trailer
Lowbed semi trailer also be named Lowboy trailer, Low loader trailer, Drop deck trailer, Low deck trailer, Low loader. Generally the normal low bed semitrailer loading capacity is from 30T-120T. For the special loading on loading capacity or cargo szie, customized is necessary.
Low loader trailer is the most classic type of low deck and heavy haulage, and all the other lowbed trailers like RGN trailer, Folding neck trailer , Extendable lowbed trailer are designed based on the original feature of conventional lowbed trailer.
Gooseneck,long cargo platform, the rear end with whell and ramp, the three parts are the main structure of low loader.
Ultra-low deck,long cargo platform, heavy haulaging are the common features of lowbed trailer.
Main Low Bed Trailer list

2 Axles Heavy Duty Lowbed Trailer	2	35-50T	L-12500-15500 W-2450-3500 H-900-1500
3 Axles Heavy Duty Lowbed Trailer	3	50-65T	L-12500-16500 W-2450-3500 H-900-1500
4 Axles Heavy Duty Lowbed Trailer	4	65-85T	L-13000-17000 W-2450-3500 H-900-1500
2 Line 4 Axles Lowbed Trailer	4	80T+	L-13000-18000 W-2450-3500 H-900-1500
3 Line 6 Axles Lowbed Trailer	6	100T+	L-13000-18000 W-2450-3500 H-900-1500
4 Line 8 Axles Lowbed Trailer	8	120T+	L-13000-18000 W-2450-3500 H-900-1500
5 Line 10 Axles Lowbed Trailer	10	150T+	L-13000-18000 W-2450-3500 H-900-1500
Multi Axle Heavy Duty Lowbed Trailer	5+	85T-120T	L-14000-20000 W-2450-3500 H-900-1500
Hydraulic Folding Gooseneck Lowbed Trailer	2,3,4,5,6,	35T-80T	L-12500-18000 W-2450-3500 H-900-1500
Gooseneck Detachable Lowbed Trailer	2,3,4,5,6	35-85T	L-12500-18000 W-2450-3500 H-900-1500
Extendable Lowbed Trailer	2,3,4,5,6	35-80T	L-12500-20000 W-2450-3500 H-900-1500

Product ParametersCapacity:20,00kg to 120000kg can be customized made, which depends on customers and use specify.Type:2 axles front load lowbed semi trailer3 axles front load lowbed semi trailer4 axles front load lowbed semi trailerLowbed Chassis:Folding Gooseneck Low Loader has been produced in welding constructions with gas metal arc welding as "I" crossing from high resistant steel considering overloads proper to capacity and intended usage.Front Load Low-bed Semi-Trailer Dimensions:Platform length:Various depends on intended usage(customized)Width: 2500 mm - 4500 mm varies according to demand.Platform (Pool ) Height: Varies depending on intended usage. Pool Height: 500 mm (Min) - 1400 mm (max)

Main beam	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B,T700,Q355B welded by automatic Submerged-Arc processes.
Frame Beam	Top Flange 14mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 500mm
Loading Capacity	30-150T
Dimension	Length and width dimensions available custom made
Axle number	2,3,4 axles to 7, 8 Axles
Axle Brand	BPW,FUWA,Yuek,
Suspension	Mechanical, Hydraulic, Air suspension
Pneumatic Braking System	Dual line pneumatic brake system,T30 air chamber ,40L air tanks, WABCO Emergency relay valve
Ramp	Mechanical spring or hydraulic lifting ramp
Landing Gear	two speeds, manual operating
Accessories	One standard tool box
Spare tire rack	One
Electrical system	24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Detailed Photos
Company Profile
Qingte Group is a diversified enterprise specialize in Special Vehicle, drive axle, trailer axle , and auto parts like gears and casting with the strength of good quality and pretty competitive price. And real estate.
Sincerely hope to establish communication with you for any possible cooperation in the market
Customized special trailers manufacture and Qingte own design trailer export.
Our main trailers including Cargo transport, flatbed, side wall trailer and skeletal semitrailers(container semitrailers
), Low bed trailer,Tank semitrailers, Modular Trailers (Hydraulic multi axle trailer), SPMT (Self-propelled Modular Transporters),trailer for wind power industry, etc
With rich processing experience and practical expertise, Solid, Durable, and Powerful quality products can be supplied.
We know how to make better bodies for semi-trailers, dumpers, and trucks

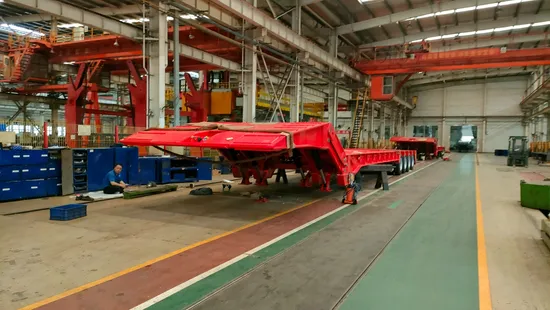

Production Capacity
Customer VisitingPackaging & ShippingHow to transporting semitrailer is one of the important process to take. Customer will choose container transportation, bulk cargo carriers or Ro-ro ship. The most suitable transportation methods will be recommended to customer according to the semitrailer situations.

---
