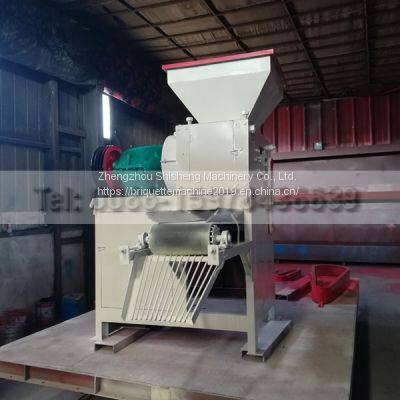

Briquette Press with 20% Higher Yield
Briquette Press with 20% Higher Yield Introduction:
(1) Briquette Press with 20% Higher Yield is mainly used for an hydrous materials of nonferrous and ferrous mineral powder briquette machine /ball making system before the smelting furnace.
(2) Raw material ranges from coal, coke powder, coking coal, coal ash, coal mud, iron ore concentrates, chromate ore concentrates, mgo power, copper power, chrome ore power, Lead Zinc Ore, steel slag, aluminum ash, Si Mn mineral powder, bauxite refractory, nonferrous metal power, refractory matter, ceramic filter sand and metallurgical powder cold pellet making industry.
Briquette Press with 20% Higher Yield Structure:
(1) The feeding part, is used to feed material so that the material can feed to roller evenly, it is driven by three phase asynchronous motor.
(2) The transmission part, main transmission system is: Motor - Triangle belt - Reducer - Exposed Gear - Roll.
(3) Forming part, mainly refers to the part of the host machine, its core part is roller.
Briquette Press with 20% Higher Yield Customer Notice:
(1) Material size required before feeding into Briquette Press with 20% Higher Yield is better not more than 5mm, if large, it is necessary to crush them into smaller, or equip a crusher before briquetting machine. Our factory also produce this kind of crusher. Welcome to consult.
(2) Moisture content is around 12-15%. If not, it is necessary to get drying process in advance or inquiry us dryer machine.
(3) The finished products from Briquette Press with 20% Higher Yield is usually at Φ25-60mm, customized size.
(4) The final briquettes are smokeless, non-toxic, none peculiar and environmental protection, and easy transport.
(5) The shape can be Square, ball egg-shaped, round, oval, and column, elliptic type, pillow type and other special shapes by customizing the match molds.
Briquette Press with 20% Higher Yield Technical Parameter:
Model: KF650-500-300
Reducer: ZQ650
Ratio: 40.17
Roller Size: 500*300mm
Main Shaft Speed: 8-10r/min
Matched Power: 37kw
Capacity: 8.5-9.5t/h
Pressure Type: Constant Pressure/Hydraulic Pressure
Roller Material: 65Mn, high chrome alloy and 9Cr2Mo
XM Series Coal Briquetting Machine
| Model | Reducer | Ratio | Roller Size(mm) | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| XM290 | ZQ350 | 1:31.5 | 290*200 | 12-14 | 5.5 | 0.9-1.0 | Constant Pressure |
| XM360 | ZQ350 | 1:31.5 | 360*250 | 12-14 | 7.5 | 1.5-2.0 | Constant Pressure/Hydraulic Pressure |
| XM400 | ZQ400 | 1:31.5 | 400*250 | 12-14 | 7.5 | 2.5-3.5 |
| XM430 | ZQ400 | 1:31.5 | 430*250 | 12-14 | 11 | 3.5-4.5 |
| XM500 | ZQ650 | 40.17 | 500*470 | 10-12 | 37 | 7.5-8.5 |
| XM650 | ZQ850 | 40.17 | 650*470 | 9-11 | 45 | 9-10 |
| XM750 | ZQ1000 | 40.17 | 750*570 | 9-11 | 90 | 13-14 |
| XM850 | ZQ1250 | 50 | 850*570 | 8-10 | 110 | 15-17 |
| Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm |
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo |
| According to different material adjust machine parameter to meet customer production |
KF Series Mineral Powder Briquetting Machine
| Model | Reducer | Ratio | Roller Size | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| KF500-371-280 | ZQ500 | 40.17 | 370*280 | 8-10 | 11 | 6.5-7.5 | Constant Pressure/Hydraulic Pressure |
| KF650-500-300 | ZQ650 | 40.17 | 500*300 | 8-10 | 37 | 8.5-9.5 |
| KF850-650-300 | ZQ850 | 40.17 | 650*300 | 8-10 | 55 | 10.5-11.5 |
| KF1250-750-350 | ZS1250 | 50 | 750*350 | 7-9 | 110 | 13.5-14.0 |
| KF1450-850-350 | ZS1450 | 50 | 850*350 | 7-9 | 132 | 15.0-16.0 |
| KF560-1000-350 | ZSY560 | 50 | 1000*350 | 7-9 | 150 | 17.0-20.0 |
| Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm |
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo. |
| According to different material adjust machine parameter to mmet customer production |
YHG Series Dry Powder High Pressure Briquetting Machine
| Model | YHG-0.5 | YHG-1.5 | YHG-3.0 | YHG-5.0 | YHG-8.0 | YHG-10.0 |
| Roller Diameter(mm) | φ299 | φ367 | φ522 | φ738 | φ760 | φ858 |
| Roller Width(mm) | 180 | 183 | 196 | 210 | 225 | 300 |
| Capacity(t/h) | 0.5 | 1.2-1.4 | 2.5-3.0 | 4.5-5.5 | 7.5-8.5 | 8.0-9.5 |
| Main Reducer | ZQ650 | ZQ850 | ZS1250 | ZS1450 | ZS1650 | ZS1650 |
| Main Motor | 18.5 | 37 | 55 | 75 | 90-110 | 110-132 |
| Pre-pressure Motor(kw) | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 |
| Pre-pressure Reducer | WHC-125 | WHC-160 | WHC-200 | WHC-210 | WHC-210 | WHC-250 |
| Remarks: Above capacity is based on material specific gravity 1.3, briquette size: φ35*30*20mm |
| Roller material adopts 9Cr2Mo |
| Pre-pressure motor is speed motor |
Company Profile
Zhengzhou Shisheng Machinery Co., Ltd.
The factory is located in Zhengzhou Economic and Technological Industrial Development Zone, covering an area of more than 130 acres. It has two standardized heavy-duty industrial plants with 10,000 square meters, more than 150 large and medium-sized metal processing, riveting and assembly equipment, and more than 130 online employees, including There are more than 30 management cadres and engineering and technical personnel with intermediate and senior titles. The company has successively introduced advanced technologies and processes from the United States, Germany, Japan, Australia and other countries, established an internationally advanced production line and a first-class modern testing base, and established a sand and gravel machine research room, a grinding machine research room, and a research room for mineral processing equipment room. The company has rapidly grown into a production and sales base of mining machinery in China with scientific management methods, manufacturing processes for excellence, and innovative manufacturing concepts. Do your best to continuously improve and make it increasingly international.
