Sale oil filter oil and water separator filter machine

Product Description

Product Description

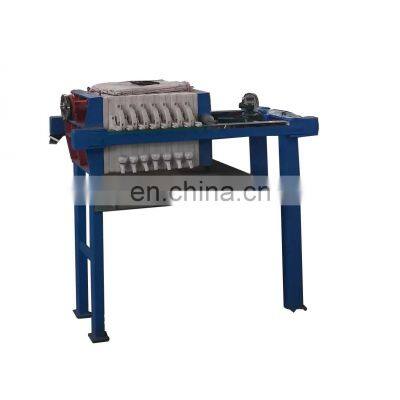

Sale oil filter oil and water separator filter machine JX series plate pressure oil purifier is mainly used to separate the impurities and water from the oil. It is suitable for filtering the cooking oil, transformer oil, used lubricating oil and so on. There is filtering media, such as filtering paper or filtering cloth, installed between the plastic filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering cloth packed between the filter board and filter frame will play a role of filtering. It's characterized by simple structure,easy operation,low cost,ect. Technical parametersmodelsJX-30JX-50JX-100JX-125JX-150JX-200JX-300flowL/min3050100125150200300working pressureMPa00.5filtration area≥0.3≥0.39≥1.3≥1.54≥1.89≥2.01≥3.1 mm280×280320×320compress mode Frame amout11131711131925 Plate amount12141812142026 Power supply 380V 50HZ Total power(KW)0.751.12.22.2345.5 Rotate speedr/min1440 Filtration precisionμm≤5≤3 Filtering cloth sizemm285×290325×330 Inlet diametermmφ32φ32φ42φ50φ50φ60φ60 Outlet diametermmφ25φ25φ38φ42φ42φ50φ50dimensionL mm7508008508008509201000Wmm530530530600600600600Hmm9309309301100110011001100 Total weightkg8095130180210250300.Dimension and weight will be changed with changing the technical specificationIf this product is not your required,We also have other products: ZSC Engine Oil Purifier SeriesZSA vacuum distillation machine to base oilJNC Waste engine oil and black oil regeneration diesel oil equipmentRZL Lubricating Oil PurifierRZL-B Series Lubricating Oil PurifierTZL Turbine Oil PurifierZLA Two-Stage Vacuum Oil Purifier SeriesZLC Two-Stage Multi-Function Vacuum Oil Purifier SeriesZL series of high-efficient vacuum oil purifierKL FIRE-RESISTANT OIL FILTER MACHINE SERTLA light fuel oil purifier seriesJL Portable-type Oil PurifierLY Plate Pressure Oil filtering Machine Ms barbara Mobile:0086-15238020768 Tel: 0086-0371-65863108 Fax:0086-0371-65863109 Skype:charcoal68

---
