High Density Wnife Tungsten Carbide Bearing Super Ball Dia5.0mm

Product Description

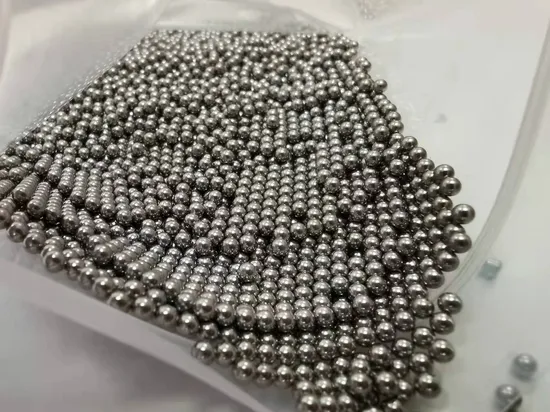

High density tungsten alloy balls Tungsten nickel iron/copper(WNiFe&WNiCu) alloy balls/shots Material: W90NiCu, W90Ni7Fe3, W92NiCu, W92.5NiFe, W95NiFe, W97Ni2Fe1 1) Density of tungsten shot: 17g-18.5g/cm3 2) Available size: Dia: 2.0mm,dia2.25mm,dia2.5mm,dia3.0mm,dia3.5mm,dia4.0mm,dia4.5mm, dia5.0mm,dia5.5mm,dia6.0mm,dia6.5mm and so on,the biggest size is dia15mm High density Tungsten based alloy shot/ball Tungsten Alloy Density: (17~18.5) Tungsten Alloy component: W(88-98)% with the addition of nickel and copper or nickel and iron, etc Tungsten Alloy applications: For making rotors of aircraft wings, shileding materias for radioactive isotope (Cobalt 60), and formaterials of armor piercing bullets and mould, etc.
Tungsten high heavy alloy Production Method 1), Blending of tungsten powder with other metal powders and a bonding agent, cooling and sieving. 2), Pressing the blended powder to the required shape (allowing for shrinkage during the final processing), and shaping the green part component. 3). Pre-sintering the pressed components to remove the bonding agent. Final sintering in the hydrogen fed furnace to fuse the powder particles together. 4). Supplied in bar, square, round and rectangle sizes are available in rough oversize, or turned or ground to exact requirements. Components can also be produced to customer drawings.
We supply various products of Tungsten high heavy alloy
-Tungsten Nickel Iron Alloy -Tungsten Nickel Copper Alloy
High Quality Tungsten High Heavy Alloy ASTM B777-07 rods/sheet/tubes
- Material: W90-97NiFe(Magnetic) & W90-97NiCu(Nonmagnetic)
- Density:16.8-18.8g/cm3
- Rods Size:dia(1.5 -200) x Length<500mm
Plate size: 0.1min Thickness*W*L Production Method

Class	Nominal tungsten (weight percent)	Density (g/cc)	Hardness ( HRC )(maximum)
1	90	16.85 - 17.25	32
2	92.5	17.15- 17.85	33
3	95	17.75- 18.35	34
4	97	18.25- 18.85	35

We also have other tungsten carbide products:
Tungsten Carbide ball/tungsten caride shot
The tungsten carbide alloy ball/shot:
1. Tungsten nickel iron/copper(WNiFe&WNiCu) alloy balls/shots
Material: W95NiCu, W95NiFe, W90Ni7Fe3, W92Ni5Cu3, W92.5NiFe, W97Ni2Fe1, etc.
2. Tungsten carbide alloy balls/shots
Grade: YG6 YG6X YG8 YG10 or as customers' requirements
Material: WC94% Co6%, WC92% Co8, etc
Property: Good Wear Resistance,High Hardness
3. Tungsten shots/balls specification:
1) Density of tungsten shot: 17g-18.5g/cm3
2) Available size:
Dia2.0mm, dia2.25mm, dia2.5mm, dia3.0mm, dia3.5mm, dia4.0mm, dia4.5mm, dia5.0mm, dia5.5mm, dia6.0mm, dia6.5mm and dia10mm, etc., and the biggest size is dia15mm.
Tungsten carbide alloy grade:

Grade	Binder (Wt %)	Density (g/cm3)	Hardness (HRA)	TRS (≥N/mm²)
YG6	6	14.8	90.0	1520
YG6X	6	14.9	91.0	1450
YG6A	6	14.9	92.0	1540
YG8	8	14.7	89.5	1750
YG12	12	14.2	88.0	1810
YG15	15	14.0	87.0	2050
YG20	20	13.5	85.5	2450
YG25	25	12.1	84.0	2550

---
