2024 New Type Track Mobile Crusher Plant Price

Product Description

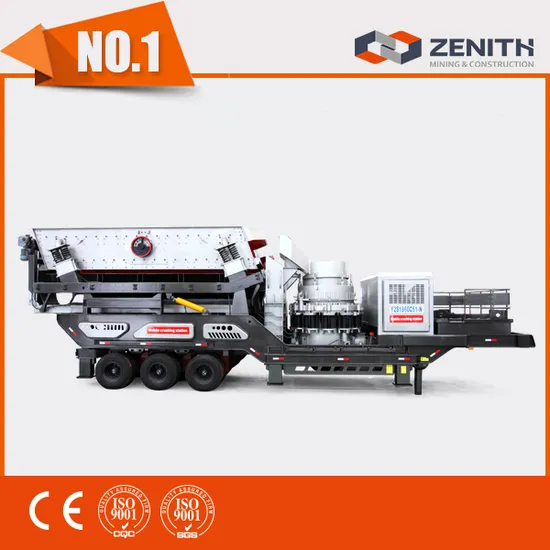

2024 New Type track mobile crusher plant price
track mobile crusher plant introduction :
track mobile crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. track mobile crusher plant concept is fully adaptable to all mobile crushing needs, it set up a new range of business opportunities for coarse and fine crushing. It can eliminate the obstacles of the crushing places and circumstances, and offer the high efficient and low cost project plants for the client. To the client, it is the best choice.
track mobile crusher plant features:
1. Jaw crusher series high performance crusher
2. Incorporated the feeder, belt conveyor and vibrating screen into the crusher
3. Steering traction axis, convenient for road transportation
4. Support legs on truck, quick to set-up
5. Electric motor and control cabinet are incorporated
track mobile crusher plant Application:
track mobile crusher plant are mostly use for crushing and screening in many areas, such as road construction, bridge construction, building, mining, metallurgical and energy industries, etc. Commonly materials like granite, marble, basalt, iron ore, copper ore, coal, slag and others are easily to be crushed by the crushing plant.
track mobile crusher plant Working Principle:
track mobile crusher plant concept is fully adaptable to all mobile crushing needs, it sets up a new range of business opportunities for contractors, quarry operators, recycling and mining applications. It can eliminate the obstacles of the crushing places and circumstances, and offer the high efficient and low cost project plants for the client. To the client, the Jaw Crusher Series track mobile crusher plant is the best choice.
track mobile crusher plant parameters:

Parameter model	Transport length (mm)	Transport height (mm)	Transport width (mm)	Max. height (mm)	Max. width (mm)	Belt conveyor height (mm)	Total weight (ton)
YF938J69	11200	3900	2450	4700	2900	2600	42
YF1142J710	13000	4400	2450	5100	3100	2600	55
YF1349J912	15000	4800	3000	5600	3300	2800	72

Configuration

Parameter model	Feeder spec	Jaw crusher	Belt conveyor	Extended belt conveyor	Generator	Capacity (t/h)	Power (kw)
YF938J69	GZD-960X3800	PE600X900	B650X7M	Optional	Optional	70-150	91.5
YF1142J710	GZD1100X4200	PE750X1060	B800X9M	Optional	Optional	90-200	134
YF1349J912	GZD-1300X4900	PE900X1200	B1000X11M	Optional	Optional	150-300	146

---
