2024 Horizontal Machining Center CNC Milling Machine Inverted T-Type Horizontal CNC Machine

Product Description

MINGJU HM800 Inverted T-Type Horizontal Machining Center
Technical specification

Model			HM500	HM630	HM800
Item	Specification	Unit
Travel	X/Y/Z Axis	mm	1100/800/900	1100/800/900	1300/1000/1100
	Distance from spindle nose to worktable center	mm	150-1050	150-1050	250-1350
	Distance from spindle centerline to worktable	mm	130-930	130-930	50-1050
	Guideway Type	Three-linear-guideway
Worktable	Worktable Size (L*W)	mm	500x500	630x630	800x800
	Max.Worktable Load	kg	800	1200	2000
	T-Slot	mm/mm/mm	5-18-100	5-18-125	7-18-100
Spindle	Spindle Taper	type	BT50	BT50	BT50
	Spindle Speed	rpm	6k	6k	6k
	Spindle Motor Power	kw	15-18.5	15-18.5	15-18.5
	Spindle Drive Type		belt	belt	belt
Feed	X/Y/Z Axis Rapid Feed	m/min	24/24/24	24/24/24	24/24/24
	Maximum cutting feed	m/min	10	10	10
Tool Magazine	Magazine Type		Arm type	Arm type	Arm type
	Tool Holder Type	type	BT-50	BT-50	BT-50
	Tool Capacity	tools	40	40	40
	Max Tool Diameter (adjacent tools)	mm	φ105	φ105	φ105
	Max Tool Diameter (no adjacent tools)	mm	φ200	φ200	φ200
	Max Tool Length	mm	350	350	350
	Max Tool Weight	kg	15	15	15
	Tool Change Time	sec	7	7	7
Accuracy	Positioning Accuracy	mm	±0.005	±0.005	±0.005
	Repeat Positioning Accuracy	mm	±0.003	±0.003	±0.004
Power	Power Requirement	kVA	35	35	40
	Air Pressure Requirement	kg/cm²	6~8	6~8	6~8
Dimensions	Length/Width/Height	mm	5700x4200x3100	6100x4900x3300	6100x4900x3300
	Weight	ton	14	15	18.5

Product Description
Introduction
The main structure of this machine tool features an inverted T-shaped bed witha front-mounted box layout. It has four CNC axis: X-axis, Y-axis, Z-axis, and B-axis. With a single clamping, it can complete four-sided machining of parts, making it particularly suitable for the machining of holes and flat surfaces on box-type parts.

Bed and Column
The column features a triangular side structure with multiple layers of reinforcing ribs, enhancing the stability of the machine body.
The inverted T-shaped bed structure is compact, making chip removal easier.
Uses Taiwanese roller linear guideways, which offer high load capacity and stable precision.
Spindle
Uses an original 190mm BBT50 spindle from Taiwan, equipped with a labyrinth air-blowing waterproof device to protect the spindle, with a circular water spray system to enhance machining quality.
Features a FANUC high-torque wide-range motor BiP30/8000, providing stronger heavy-cutting capability.
Worktable Exchange/Fourth-Axis Rotary Table
Enables automatic workpiece exchange,improvingefficiency.
High-rigidity alloy worm gear and worm, offering high positioning accuracy, heavy-duty locking, reduced deformation, and durability under heavy cutting.

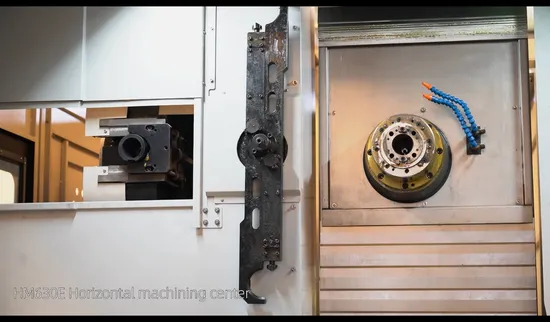

Tool Magazine
Equipped with an originaltool magazine from Taiwan,offering fast toolchanges that are stableand reliable.
Grating scale
An optional grating scale can be equipped to achieve fullclosed-loop control,ensuringmachine tool positioningaccuracy within ± 5μm.
