Wet Rolls with Tires for Reheating Furnaces

Product Description

Qingdao Hexin Machinery Co., Ltd. are professional Centrifugal Casting Sink Roll for Continue Galvanizing Line, Centrifugal Casting Sink Rolls, Centrifugal Casting Rolls, Stabilizer rolls, Furnace rolls for plate heating furnace, Rolls for CAL, Water cooled rolls, Coated rolls manufacturer from China.

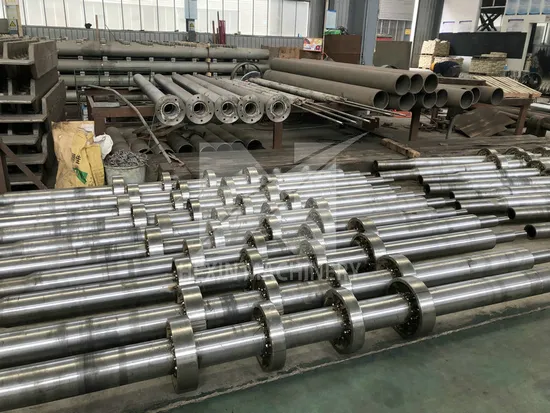

Qingdao Hexin Machinery Co., Ltd. produces furnace bottom rolls,which it adopt the centrifugal casting, precisely casting technology on journal bell mouth, shaft head with forging process. It can be transported with using professional wood packaging to the packing, its excellent quality has won high praise at home and abroad.
wet rolls for tunnel furnaces
HEXIN water cooled rolls have been performing well in tunnel furnaces throughout the world ,which are made by high nickel alloy tires welded to steel shaft, including a castable refractory or without the refractory.
The wet rolls perform well in atmospheres over 1300 degrees C.
The nickel alloy tires are made from heat reistant stainless steel like 2.4879, by lost wax invesment casting method with special heat treatment.
We also supply customized alloy tires or ring to customers for installation by themself.
We also produce other castigns for CSP plants, like dry rolls for tunnel furnaces, riders for walking beam or pusher type reheating furnaces in nickel and cobalt based alloys, looper rolls, run out table rolls, wrapper rolls.
Other components for plate mill and tube mills like tube mill pierce points,plate mill heat treat hardening furnace rolls, rider tiles, hearth skids, buttons, drop-out skids,recuperator boxes, recuperator tubes
The slab of the thin slab caster is cut to length and directly enters the roller hearth furnace for soaking and is transported by the hearth roller to the hot rolling mill for rolling.
Special working conditions require the product to be resistant to high temperature, pressure, and abrasion, but also to withstand the impact of the slab head and the friction
and torsion of the slab movement.

Item	Cenrifugally cast rolls for roller hearth slab reheat furnaces
Process	Centrifugal/spun casting method for roll body, precision casting of assembly shaft head.
Material	316L,316,HK,HT,HU,HP,HH,ZG40Cr25Ni20Si2,ZG14Ni32Cr20Nb,ZG45Ni48Cr28W5Si2.
Application	The heat treatment furnace roll are usually used for normalizing furnace and hardening furnace, under the hydrogen nitrogen protective environment, Furnace temperature is about 900 ºC. CGL (Continuous hot dip galvanizing line),Plating aluminizing line, Plating silicon line.
Specifications	Outer diameter: 55mm-2000mm Length: as per your request
Test	Chemical analysis by spectrometer for each heat,eddy current test,pressure test ,thickness test , PT 100%(liquid penetrant test),VI(visual inspect)100%,dimensional check.
Products	Sink rolls Stabilizer rolls Furnace rolls for plate heating furnace Rolls for CAL Water cooled rolls Coated rolls

About us
Qingdao Hexin Machinery Co., Ltd. is professional for manufacturing, sale and research of high temperature alloy centrifugal cast tube, Heat resistant steel precision castings and sand mold casting.
The main products are: Ethylene cracking furnace furnace tube, reformer furnace tube, all kinds of casting alloy elbow, casting tube sheet, hook, hanger, bracket and other heat resistant casting products. Furnace rollers, radiant tubes, sink roll, stabilizing roll, support arm and sleeve and other heat resistant alloy used for continuous galvanizing line(continuous annealing line), all kinds of heat treatment fixtures used for heating processing equipment, like tray, basket, fan and so on. Widely used for famous brand heat treatment equipment, such as IPSEN, AICHELIN, FONTON, etc.
We committed to the strict quality control and strictly implement ISO9000 series quality management system, Ensure the castings in each process of each station "zero defect" production, Quality has won the acceptance of customers at home and abroad.
Welcome to view our website: hexinmachineryqd.en.made-in-china.com

---
