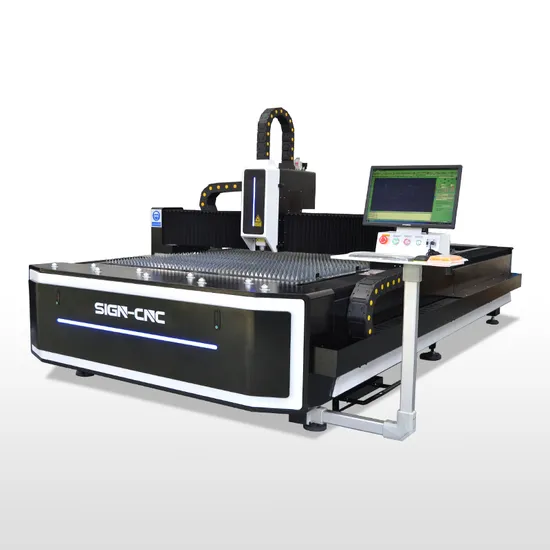

| Model | SIGN-1530 |
| X, Y Working size | 1500x3000mm |
| Laser Source | Raycus-RFL series laser source |
| Laser Cutting Head | Raytools BM110 Auto focus cutting head |
| Laser Wavelength | 1064nm |
| Min Line Width | 0.1mm |
| Positioning Accuracy | 0.05mm |
| X,Y Axis | High precision PMI Linear Guide rail and YYC rack |
| Z Axis | High precision PMI Linear Guide rail,TBI ball screw |
| Max.Running Speed | 60m/min |
| Max.Cutting Speed | ≤45m/min (Depends on material) |
| Servo Motor & Driver | Japanese YASKAWA 850W+400W Zaxis with brake |
| Working Voltage: | AC380V/50/60Hz |
| Speed Reducer | Japanese Shimpo planetary reducer |
| Control System | CYPCUT2000C Auto Focus |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| X,Y Resolution | <0.01mm |
| Water Chiller | Industrial circulation S&A water chiller |
| Running Temperature | 0 degree - 45 degree |
| Assisting Gas | Compressed air, oxygen and nitrogen |
