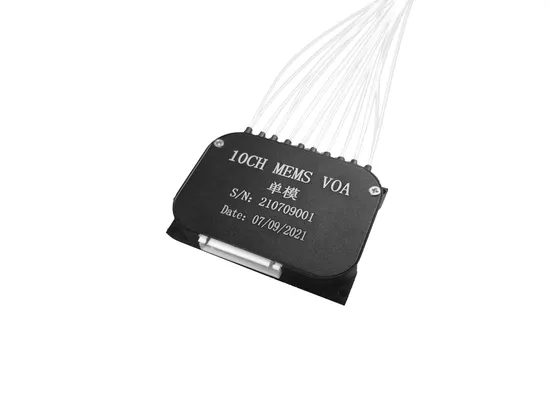

VOA Module with Low Insertion Loss for Receiver Protection

US$150.00 1 Piece (MOQ)

Basic Info.

Model NO.
VOA module
Certification
ISO, RoHS
Condition
New
Quality Control
100% Testing Before Shipping
Transport Package
Box
Specification
Small
Trademark
ZG
Origin
Mianyang, China

Product Description

Features Applications
High reliability High transmission optical power
High stability Optical path power balance
Low insertion loss Channel transmission equalization
Rapid response
Optical specifications
Operating voltage(V) 5-12V
Operating wavelength(nm) 1260-1650 or 980nm/1064nm
Center wavelength(nm) 1310/1550/1064
attenuation range(db) 0-30
Attenuation stability(db) ±0.04(max)
Return loss(db) > 55
Operating temperature(ºC) - 20~60
Storage temperature(ºC) -40~80
Connector type Optional
Pigtail length Can be Customized
Control agreement RS232
Channel number 1-10(Can be Customized )
Dimensions(LXWXH) 64X44X13 mm
Wiring Instruction
Function Color
Positive (DC5V) red
Negative blue
RS232 TX (3)
RS232 RX (2)
RS232 GND (5)

Communication Specification
A serial port options Data set
Baud rate 9600
Stop bit 1 Digital
Data bit 8 Digital
Parity Check No
Whether to send in hexadecimal format Yes

Communication frame
Frame header Channel Data 1 bit Data 2 bit Instruction reply Description
EE C1 Z1(hexadecimal) Z2(hexadecimal) E0 C1=01 select channel 1 and C1=03 select channel 3. C1=00 select all channels. The attenuation value is set in dB and the value is (Z1x256+Z2) /10. If you want to attenuate 1 channel by 10.0dB (0x0064), send it by the serial port
(EE 01 00 64)

Single channel VOA module instruction:
Single channel VOA Module (5V) (Fiber Optical power meter 2 channels)
Accuracy 0.1dB
1. Debug mode
When it is debugging,it connects the serial port to the serial port of the optical power meter, and connect the optical fiber in which you need to debug. When the data of the optical power meter is stable and basic value calibration, then supply power to the module (5V). If the light flashing, it means that the optical fiber line is not connected properly. Wait about 10 minutes to debugging,debugging during the LED light flashing,it is still normally on after finished debugging,The optical power meter displays -41dB.
2. Working mode
In usually, connect the serial port to the computer serial port.
Set the attenuation value command (HEX) EE AA 06 xx xx 00
xx xx is the dB value to be set. If the value is 25.6dB, enter 25.6 x 10 to convert it to hexadecimal 01 00
Ordering information
ZG port Working wavelength Fiber type Fiber length Connector
0101=1X1
0202=2x2
0404=4x4
10=1060nm
13=1310nm
15=1550nm
16=1625nm
X=Others
1= Bare fiber
2=900um Fibre optical
1=1M 0=None
1=FC/APC
2= FC/PC
3=SC/APC
