Stone Crusher Limestone Crushing Jaw Crusher

Product Description

Product Description
Jaw Crusher is a crusher composed of two jaw plates, a moving jaw and a stationary jaw, which simulates the movement of two jaws of an animal to complete the crushing operation of the material. Simple structure, easy manufacture and reliable work.
Product Parameters

Model FM-JC	Feeder Opening Size(mm)	Max. Feeding Size (mm)	Discharging Opening Size(mm)	Capacity (t/h)	Power (kW)	Overall Dimension (mm)
PE150x250	150x250	125	10-40	1-5	5.5	875x758x850
PE200x300	200x300	180	15-50	2-10	7.5	910x750x990
PE250x400	250x400	210	25-60	5-20	15	1450x1315x1296
PE400x600	400x600	350	40-100	15-65	30	1565x1732x1586
PE500x750	500x750	425	50-100	40-130	45	2150x1900x1950
PE600x900	600x900	500	60-125	90-180	55	2500x2010x2350
PE750x1060	750x1060	630	60-150	110-380	110	2630x2310x3110
PE900x1200	900x1200	750	95-165	220-450	132	3720x2850x3250
PE1000x1200	1000x1200	850	200-300	280-560	160	3820x2850x3250
PEX150x750	150x750	120	10-40	5-16	15	1310x1118x1145
PEX250x750	250x750	210	15-50	15-30	22	1440x1751x1515
PEX350x750	350x750	300	15-50	18-40	30	1485x1680x1648
PEX250x1000	250x1000	210	15-60	15-52	30	1730x1950x1400
PEX250x1200	250x1200	210	15-60	20-60	37	1730x2150x1400
PEX300x1300	300x1300	250	25-60	30-105	55	2000x2320x1730

Packaging & Shipping
1. Our packaging wooden outer packing to ensure the complete use of machinery and equipment.
2. We will keep an eye on the goods until they arrive to avoid any accidents.
3. We will try our best to let customers receive the goods as soon as possible without delaying the customer's application.
Our Advantages

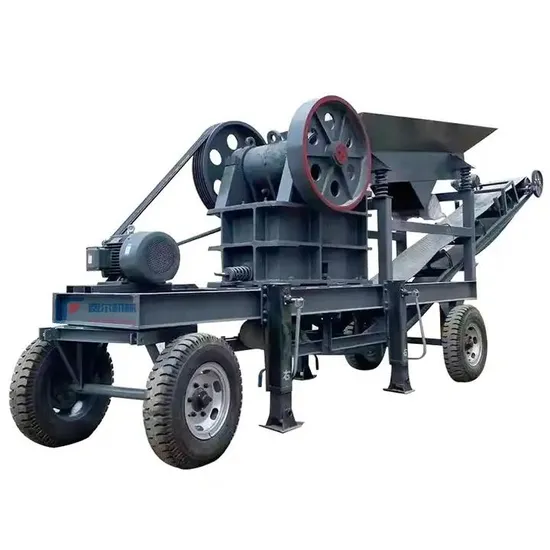

Advantage of mobile jaw crusher
1 simple structure and low price
2 convenient for transmission.
3 no need to worry about power off.
4 Discharging size of jaw crusher can be adjusted to meet the requirements of different users;
5 Diesel engine jaw crusher is easy to install, operate and maintain.
6 Every feature has been carefully designed to provide superior quality and performance.

Working principle
jaw crusher motor drives the eccentric axis rotating through the belt pulley, so that the
movable jaw approaches and leaves the fixed jaw cyclical, which makes the materials squeezed, rubbed, multi-roller crusher, etc. so that the materials are crushed into small size, and then decline gradually, at last discharge from the discharging mouth.
In the bursting work, the belt pulley is driven by the motor to make the moving plate and fixed plate collide periodically, so as to extrude and crush the material, make the material discharge from the outlet in an orderly way from the large to small, and finally complete the crushing.

Application
Jaw Crushers can be used in stationary, wheeled portable, and track-mounted locations. The Jaw Crusher is well suited for a variety of applications, including rock quarries, sand and gravel, mining, construction and demolition recycling, construction aggregates, road and railway construction, metallurgy, water conservancy, and the chemical industry.
Processing Material:
Granite, Basalt, Quartz, Gold Ore, Copper Ore, Iron Ore, River Pebbles, Marble.etc
After Sales Service
Pre-sale services
1 Select equipment model;
2 Design and manufacture products according to clients' special requirement;
3 Train technical personnel for clients.
Services during the sale
We respect clients and always devote ourselves to improving the total value of clients:
1 Pre-check and accept products ahead of delivery;
2 help clients to draft solving plans.
After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
FAIR is provided with independent research and development system, our high reputed engineers and technicians can provide users with overall technical support, including material characteristic analysis, crushing test and process optimization of flow simulation.
FAQ
Q: Deliver time?
A: The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected, and part availability.
Q: Payment terms?
A: Accepted Payment Type: T/T, L/C, Western Union, Cash, and so on. After signing, the contract, pay the 10%-30% deposit of the total purchase price and pay the full payment before delivery.
Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide technical advice and find the solution immediately for you when the machine is in trouble. For those worn parts, we guarantee high-quality parts for long-term supply.
Q: What should I do if I want to get the best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
To design a suitable model for you , we need to know :
1. what kind of stone do you want to crush ? like limestone ? or granite ?
2. what's the size of your stone before crush ? how many inch or mm ?
3. what's your requirements of final product size ? how many inch or mm ?
4. what's your requirements of production capacity ? how many ton per hour ?

---
