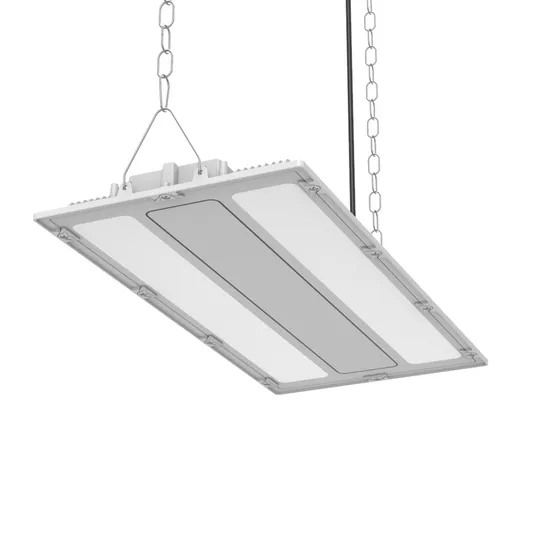

300W Warehouse Factory Ceiling Light Outdoor Basketball Court Lighting Floodlight LED Linear Highbay Light

Product Description

300W 200W 150W 100W Office Conference Room LED Table Education Eye Protection Lamp LED Linear High Bay Light Features:
• New generation linear LED high bay fixture with efficacy up to 190lm/W. An ideal replacement for iron sheet LED high bays both in industrial and stadium lighting, such as logistics center and ice arena.
• Die-cast aluminum housing with polyster powder coating, more efficient heat dissipation and robust structure than iron sheet counterparts on the market.
• Flicker-free driver combines optimized 30º/60º/90º PC lens of low UGR<22, qualified for HDTV broadcasting
• 4mm tempered glass pan for labor-saving cleaning. Breather valve applied to avoid possible condensation in low-temperature applications.
• IP65 rated waterproof suitable for wet and damp locations. Suspending and surface mount installation options.
Dimensions:
100W-150W:
200W-240W:
300W:
Technical Data:

• Optoelectronic
Model No.	LLB03-100W/150W	LLB03 200W/240W	LLB03-300W
Rated Power	100W/150W	200W/240W	300W
System Efficacy(±5%)	180Lm/W
Luminous Flux(±5)	18000-27000Lm	36000-432000Lm	54000Lm
Color Temperature(CCT)	3000K / 4000K / 5000K / 5700K / 6500K
Color Rendering Index	Ra>80
Beam Angle	30°, 60°, 90°, 120°, Type2, Type3, Type4-S
Chromatic Consistency(SDCM)	≤4
• Electrical
Input Voltage	AC100~277V
Frequency	50/60Hz
Power Factor	≥0.95
THD	<15%
Driver Brand	Meanwell/Done/Lifud/Zhihe
Dimmable(Opt.)	0/1-10V / DALI
Sensor Type(Opt.)	Microwave / PIR
• Mechanical
Housing Material	Die-cast aluminum ADC12
Surface Finish	Powder coated
Lens Material	UV-resistant Polycarbonate
• Environmental
Ingress Protection	IP65
Impact Protection	IK09
Ambient Temperature	-40ºC ~ 50ºC
Storage Temperature	-30ºC ~ 60ºC
Lifespan(L80B10@Ta25ºC)	100000h

Luminous Intensity Distribution:
Applications:
RFQ:
Q1: What is your terms of payment?
A1: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q2: Can I get sample order first?
A2: Yes. Welcome sample order to test quality.
Q3: Is your enterprise a factory or trading company?
A3: We are a factory specializing in R&D
Q4: What kind of products are you specializing in?
A2: We focus on Wind turbine, Solar mobile tower light, UFO LED high bay light, LED triproof light, LED flood light, LED stadium light, LED flood light, LED linear pendant light, LED linear bay light, garden light, Solar street light and LED street light etc.
Q5. All LED light have a warranty?
A3. Yes. All kinds of products at least 5 year warranty.
Q6:What about the packing for bulk order?
A6: If bulk order's quantity reach the custom MOQ, we can provide you the custom packing. Q1: What is your terms of payment?
