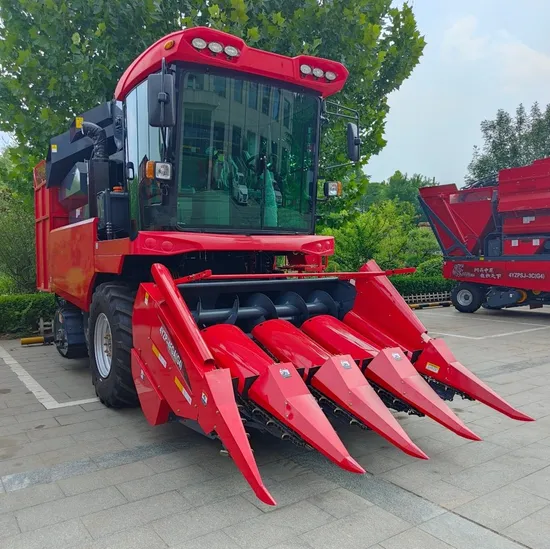

Factory Direct Sale Corn Silage Harvesting Machine Corn Maize Harvester with Big Tank

Product Description

4YZP-4FA CORN /MAIZE FOUR ROWS Combine Harvester Main Technical Parameters
Advantages:
Compact structure, excellent performance,
High threshing ability, low broken rate. Low lost rate
Thorough clearance with double shakers for re-threshing
Famous brand engine with large power and stable performance
Combine Harvester Main Technical Parameters:

Item	Project	Design Value
1	Model	4YZP-4FA
2	Type	Wheel self-propelled
3	Engine type	Weichai
4	Engine Rated Power	240hp
5	Engine Rotary speed	2300rpm
6	Overall Weight	8800kg
7	Overall dimension	6930×2560×3340mm
8	Working rows	4
9	Working width	2340mm
10	Application row width	450-650mm
11	Cutting center distance	550mm
12	Max. unloading height	2150mm
13	Conveyor Structural style	Chain scraper
14	Conveyor Max. Crossing altitude	3360mm
15	Min. Ground Clearance	300mm
16	Working speed	1.84~5.2km/h
17	Productivity	0.4~0.65hm²/h
18	Fuel consumption	≤30kg/hm²
19	Snapping roll/Board type	Roll type
20	Snapping roll/Board type size	Φ92*862mm
21	Stripping roller form	Rubber Roller
22	stripping roller size	Φ72*830mm
23	Qty of stripping rollers	20
24	Fan style	Centrifugal
25	Fan Diameter	220mm
26	Grain Tank Volume	2500L
27	Grain Unloading type	Hydraulic
28	Grain driving type	Hydraulic cylinder
29	Straw Returning machine width	2250mm
31	Gearshift method	Mechanical
32	Drive Axle Type	Gear box+Reduction of the loop Box
33	Drive Axle driving type	Mechanical
34	Steering Type	Power steering box
35	Steering Power mode	Hydraulic
36	Brake Type	Disc
37	Brake Power mode	Hydraulic power assisted
38	Wheel Base	2930mm
39	Wheel Track (Guiding Wheel)	1640mm
40	Wheel Track (Driving Wheel)	1750mm
41	Tyre Size (Guiding Wheel)	10.0/75-15.3
42	Tyre Size (Driving Wheel)	15-24-12PR-R1

Combine Harvester Main Features: Function: corn picking + peeling + corn straw cutter and chopped Grain to be collected automatically and fell in down tray while peeling Compact structure, small turning radius, is suitable for small farmland It can cross rows to collect the maize High rate of peeling, less broken grain, The cutting effect is perfect Named brand engine, enough power; Strong gearbox and reliable The clearing fan on conveyor as optional Luxury cab brings comfortable working environment; Visual imaging system Air conditioner and Hydraulic transmission HST as optional
Picture show
Q'TY IN 40 HC
Qty' of Loading: 1 Sets/40'HQ
Loading into Container photos
OUR CERTIFICATE
ISO 90001 &CE Approval .
8.our main products :
it includes walking tractor (power tiller)8-25hp ,wheeled tractor ,driven by single cylinder diesel engine 15-30HP;crawler tractor (40-110HP),Wheel tractor driven by multi-cylinder diesel engine (20
-240hp).can match kinds of farm implements .
9.kinds of farm implements and tools
10.Questions
1)how long is the warranty time ? it is 12 months since the date of B/L ;
2)how long is the delivery time ? it is about 20-30days normally since the date of 30% deposit.
3)what is the payment terms? the L/C at sight or Payment in Cash by T/T is acceptable .
4)what is the service life ?it is more than 8 years ,if the baler has a good maintanence as the manual .
5)how to order the baler? if you need it ,contact with our business manager who will take you a good solutions as your requirements .
6)how about the spare parts ? can get the spare parts from the local dealer or agent ,or directly order it from our factory .

---
