Sheet Metal Uncoiler 3 in 1 Decoiler Straightening Feeder Machine for Steel Coil Materials

Product Description

Product Description

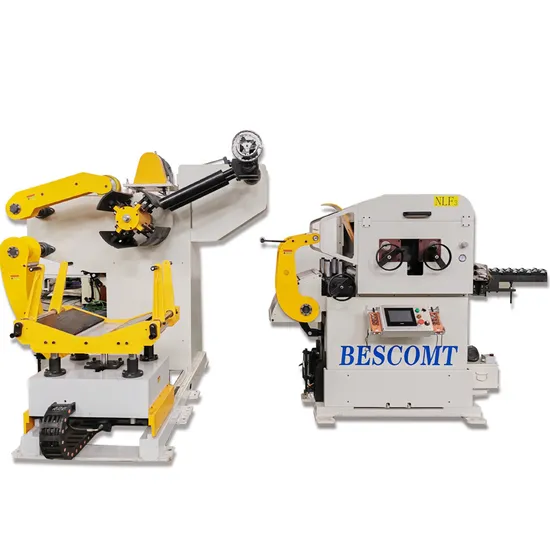

3 in 1 Decoiler Straightener Feeder
This is a compact feeding line, with decoiler, straightener and feeder machine in one combination unit.
·HIGHLY AUTOMATED High techonology, high precision, high efficiency, this feeder has the best performance among the correction feeders in the punch peripheral equipment series.
·SPACE SAVING AND LOWER USAGE COST Uncoiling, straightening, feeding in one, it greatly compresses the space that each component should originally occupy. No additional labor costs.
·SIPMLIFIED The process is concentrated on the same machine to reduce errors in feeding and straightening to achieve high precision requirements.
Product Parameters

Model	NCHL-300	NCHL-400	NCHL-500	NCHL-600	NCHL-700	NCHL-800
Width of Material(mm)	50-300	50-400	50-500	50-600	50-700	50-800
Thickness of material(mm)	0.3-3.2	0.3-3.2	0.3-3.2	0.3-3.2	0.3-3.2	0.3-3.2
Max.Coil Weight(kg)	3000	3000	3000	5000	5000	5000
Coil I.D.(mm)	450~530	450~530	450~530	450~530	450~530	450~530
Max Coil O.D.(mm)	1200	1200	1200	1200	1200	1200
Max.Speed(m/min)	16	16	16	16	16	16
Max.Speed of Air Pressure Releasa(spm/min)	100 SPM	100 SPM	100 SPM	100 SPM	100 SPM	100 SPM
Feeding Accuracy(mm)	0.15	0.15	0.15	0.15	0.15	0.15
Work Roll	upper 5/lower 4	upper 5/lower 4	upper 5/lower 4	upper 5/lower 4	upper 5/lower 4	upper 5/lower 4
Feed Level(mm)	1100+-100	1100+-100	1100+-100	1100+-100	1100+-100	1100+-100
Power Supply	Three phase 380V	Three phase 380V	Three phase 380V	Three phase 380V	Three phase 380V	Three phase 380V
Air Supply(kg/cm2)	5kg/cm2	5kg/cm2	5kg/cm2	5kg/cm2	5kg/cm2	5kg/cm2
Uncoil Expansion	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic

More Details
3 components of a 3-in-1 machine UNCOILER Hydraulic expansion, the decoiler works stably. With press arm, material support arm and the position limit arm, the coil is well fixed, avoiding operation and safety hazards. Hydraulic cart helps coil position limiting, too.
Leveler The leveling procedure is connected with the unwinding process to avoid leveling errors and ensure high precision.
FEEDER One of the highlights of the electric feeder is that the position adjustment can be numerically controlled. Automatic lubrication, hydraulic expansion, high degree of automation requires less labor costs.
Press Arm Decoiler

Other Details
Feed rollers Pressing arm Automatic feeding car Servo adjustment Measurement adjustment Motor
Simens control system Air cylinder Lubrication device
Certifications
Our pneumaic punching power press are all in accordance with export standards, and we have obtained relevant export certificates and CE certificates International CE certification, China manufacturing network SGS certification.
Exhibited at the Canton Fair
Factory Display
Customer Reviews
After Sales Service
1.We provide 24 hours on-line service
Can contact us by MSN, Skype, Email and Telephone at any timeOur factory also will make DVD to show the operation steps for the
customer.
2.We can send the component by DHL, TNT freely
Our guarantee time is two years, if any component is damaged during guarantee time
3.Our factory can send our engineer to the customer's factory install, commission and training freely
The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to
our factory to learn the operation and maintains freely.
Transport And Pack
Questions&Answers
1.Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis /Conformance; Insurance; Origin, and other export documents where required. 2.What kinds of payment methods do you accept? You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance before delivery
3.Guaranty covers? Main parts of the machine , wearing parts not included .PARTS DELIVERY. Within 5 days by DHL / Fexed .
4.About our after-sale service:Customer service 24 hours online, you can send technicians to your country to repair the machine. Buyer shall bear all costs including visa, round trip airfare and suitable accommodation and buyer shall pay usd 100 / day salary. 5.How to replace machine parts?Parts adopt international brands, good quality, no need to replace within 3-5 years, convenient to buy suitable parts locally.6.Installation&Commissioning:Usually solved by video conference, if necessary, can be dispatched to the door installation debugging and maintenance of technical personnel.

---
