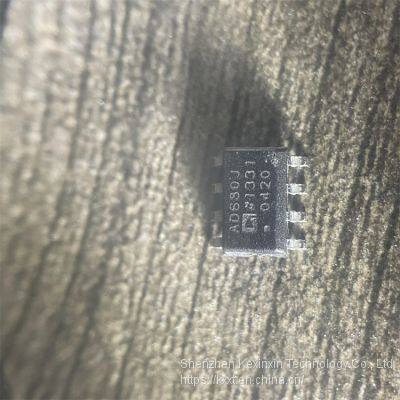

AD680JRZ Analog Devices Voltage References IC, MONO 2.5V REFERENCE IC

Product Details

Product Description

Product Description
Factory
Mfr. #:
AD680JRZ
Manufacturer: Analog Devices Inc.
Product Category: Voltage References
RoHS: Details
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Reference Type: Series References
Output Voltage: 2.5 V
Initial Accuracy: 0.04 %
Temperature Coefficient: 20 PPM / C
Series VREF - Input Voltage - Max: 36 V
Shunt Current - Max: 10 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Series: AD680
Packaging: Tube
Accuracy: 100 uV/mA
Brand: Analog Devices
Description/Function: 2.5 V, low power Bandgap reference
Height: 1.5 mm (Max)
Input Voltage: 4.5 V to 36 V
Length: 5 mm (Max)
Load Regulation: 100 uV/mA
Operating Supply Current: 250 uA
Output Current: 10 mA
Product: Voltage References
Product Type: Voltage References
Factory Pack Quantity: 98
Subcategory: PMIC - Power Management ICs
Topology: Series References
Width: 4 mm (Max)
Unit Weight: 0.019048 oz

---
