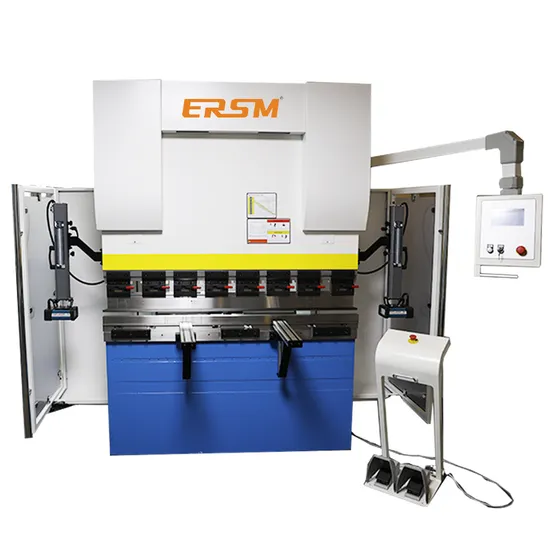

Fine Workmanship and Automatic Retraction Function Hydraulic Torsion Bar Press Brake

Product Description

Product Description The machine is used Belgium DERATECH new design and technology to manufacture, to ensure strength, rigidity and safety .Machine figure is simple and beautiful, fine workmanship, mechanical processing, Assembly of parts are all intensively and carefully work.
Machines adapt high quality steel welded structure, frame is heavy style and strong rigidity, painting imported antirust primer and surface coat to make machine durably and newly. The main frame and upper beam slider are made by imported large CNC floor type boring and milling machine which are made to ensure the mounting surface location requirements. Product Parameters

Force (kN)	350
Max. bending Length (mm)	1250
Distance between uprights (mm)	900
Opening height (mm)	385
Throat depth (mm)	200
Cylinder stroke (mm)	120
Main power (kw)	3.7
Oil(L)	70
Upper beam Speed (mm/s)	Approaching speed	150
	Working speed	0-15
	Returning speed	160
Back gauge speed X axis	Stroke (mm)	450
	Max. speed (mm/s)	450
Back gauge speed R axis	Stroke (mm)	100
	Max. speed (mm/s)	75
Machine Dimensions (mm)	Length	1500
	Width	1200
	Height	2285
Weight (kg)	2500

FAQ 1. Who are we?
A:We are based in Jiangsu, China, sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.
2.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
3.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.
4.How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
5.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.

---
