Manufacturer of Beef Cattle Feed Mixer Wagon

Product Description

Product Description

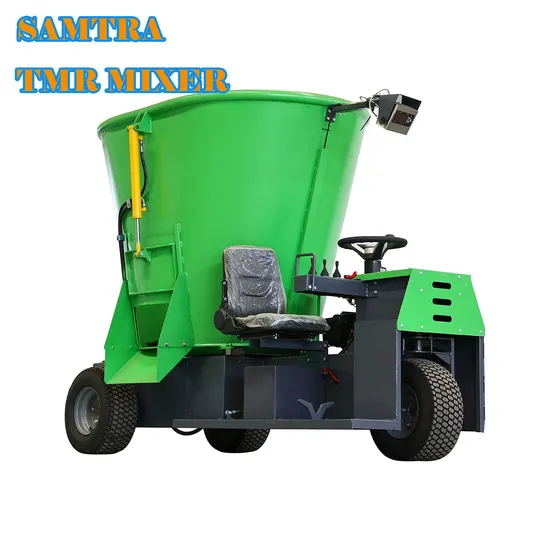

SAMTRA TMR Mixer Feeder has the features of:
1. Full hydraulically drive, easy to operate, stable operation;
2. Compact structure, small turning radius;
3. Dual-speed control, high-speed transfer and low-speed operation;
4. Real-time display of material mixing weight, convenient for mixing and proportioning of total mixed ration;
5. Mixing and spreading in one time, simple operation and low operating cost;
6. Forward and backward driving, easy to observe and control the spreading situation;
7. The auger can rotate in both directions, complete unloading and less residue;
8. Suitable for farms with 20 to 100 cattle or 50 to 300 sheep.
Product Parameters

Model	TMR15YZ
Engine Power	14KW, Diesel
Mixer Volume	1.6 m³
Weighing System	Standard
Rotation Speed of Auger	30~45 rpm
Transportation Speed	6.1 kmh
Min. Turning Radius	220 cm
Tire Model	20x8-10
Number of Wheels	3
Net Weight	1050 kgs
Overall Dimensions (L x W x H)	280*132*195 cm
Remarks: technical specifications and engineering designs are subject to change without further notice!

Detailed Photos
Weighing System Equipped
Real-time display of material mixing weight, convenient for mixing and proportioning of total mixed ratio
Diesel Engine Drive Hydraulic System
1. 14kw KAMA Diesel Engine, strong power supply
2. the hydraulic pump is imported from USA, stable hydraulic power support

Vertical Auger System
High-strength double-edge blades, wear resistant, high crushing efficiency
