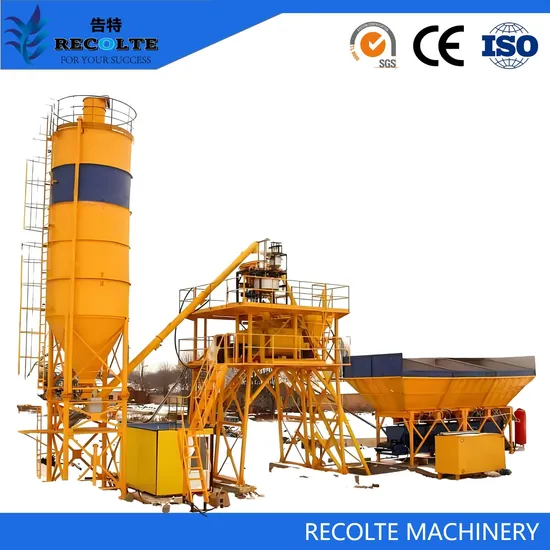

Heavy-Duty Construction Concrete Batching Plant: Built for Tough Jobs Hzs25 M3/H

Product Description

Product Description

	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS100	HZS120	HZS150	HZS180
Discharging Capacity (L)	500	750	1000	1000	1500	1500	2000	2000	2500	3000
Charging Capacity(L)	800	1200	1600	1600	2400	2400	3200	3200	4000	4800
Maximum Productivity(m³/h)	25	35	50	60	75	90	100	120	150	180
Charging Model	Skip Hopper	Skip Hopper	Skip Hopper	belt conveyor	Skip Hopper	belt conveyor	belt conveyor	belt conveyor	Skip Hopper	belt conveyor
Standard Discharging Height(m)	1.5~3.8	2~4.2	4.2	4.2	4.2	4.2	3.8~4.5	3.8~4.5	4.5	4.5
Number of Species of Aggregate	2~3	2~3	3~4	3~4	3~4	4	4	4	4	4
Maximum Aggregate Size(mm)	≤60mm	≤80mm	≤80mm	≤80mm	≤80mm	≤80mm	≤120mm	≤120mm	≤150mm	≤180mm
Cement/Powder Silo Capacity(set)	1×100T	2×100T	3×100T	3×100T	3×100T	3×100T	4×100T or 200T	4×100T or 200T	4×200T	4×200T
Mixing Cycle Time(s)	72	60	60	60	60	60	60	60	30	30
Total Installed Capacity(kw)	60	65.5	85	100	145	164	188	210	230	288

Trend Of Future Concrete Mixing Plants
Leveraging decades of profound understanding of concrete mixing technology, Recolte has independently developed the new R series electric concrete mixing stations, specifically designed for concrete mixing. We conducted a comprehensive study of the world's most advanced mixing technologies, identifying key features that optimize mixing performance in an industrial environment. Based on these insights, we synthesized this information to lay the foundational principles of our product design. Company Profile
Detailed Photos
Certifications

FAQ

---
