Reliable Da53t Controller CNC Press Brake with German Engineering

Product Description

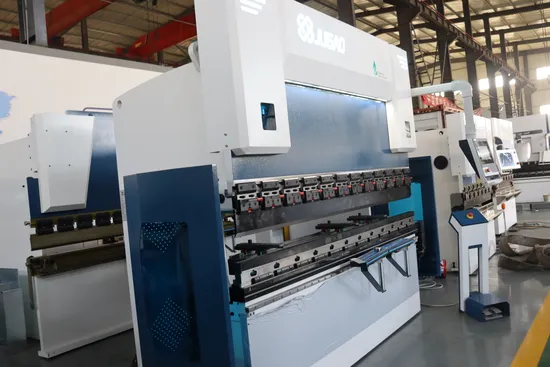

Discover the robust and versatile 80, 100, 200, and 300-ton CNC Hydraulic Press Brake Machines, equipped with the cutting-edge Delem DA53T, DA58T, and DA66T controllers, expertly crafted for superior sheet metal processing.
1. Experience seamless global operation with our sophisticated multi-language CNC operating system, designed for user-friendly interaction and enhanced productivity.
2. Rely on the whisper-quiet performance of our silent and dependable internal gear pump, ensuring the utmost efficiency and minimal disruption.
3. Harness the power of a sophisticated hydraulic system, expertly regulated by high-precision proportional valves to achieve superior control and consistency.
4. The integration of a brushless drive and motor, utilizing 'can open' digital technology, enables our high-precision backgauge to execute swift and precise axis movements.
5. Achieve exceptional accuracy with our high-precision optical lines, meticulously engineered for perfect alignment and measurement.
6. Enjoy the flexibility of adjustable clampings, allowing for seamless adaptation to varying project requirements with ease.
7. Benefit from our hardened, precision-ground tools and clamps, expertly designed for rapid tool adjustments, optimizing your workflow.
8. Our innovative backgauge fingers, mounted on a double linear guide, ensure enhanced stability and precision during operations.
9. Crafted from premium stainless steel, our front supports are fully adjustable in height, providing robust and versatile support for your projects.
10. Leverage the efficiency of our automatic mechanical crowning system, engineered to deliver consistent and flawless results.
11. Trust in the reliability of our electrical panel, equipped with high-quality components, to ensure safe and efficient electrical regulation.
12. Committed to safety, our systems comply with European safety standards and feature a robust Start&Stop system for added protection.
Technical parameter

Model	Nominal Pressure (kn)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight(mm)	Main Motor (kw)	Dimensions (L × W × H)(mm)
40/2000	400	2000	1600	200	110	335	4	2545×1510×2050
40/2500	400	2500	2000	200	110	335	4	2950×1510×2080
63/2000	630	2000	1600	250	110	350	5.5	2555×1600×2130
63/2500	630	2500	2000	250	110	350	5.5	2960×1600×2180
63/3200	630	3200	2600	250	110	350	5.5	3740×1600×2230
100/2500	1000	2500	2000	350	150	400	7.5	2980×1650×2330
100/3200	1000	3200	2600	350	150	400	7.5	3740×1650×2355
100/4000	1000	4000	3200	350	150	400	7.5	4550×1650×2450
100/5000	1000	5000	4000	350	150	400	7.5	5100×1500×2650
125/2500	1250	2500	2000	350	150	410	7.5	3980×1650×2370
125/3200	1250	3200	2600	350	150	410	7.5	3750×1650×2450
125/4000	1250	4000	3200	350	150	410	7.5	4550×1650×2470
125/5000	1250	5000	4000	350	150	410	7.5	5100×1500×2795
125/6000	1250	6000	4500	350	150	410	7.5	6100×1500×2895
160/2500	1600	2500	2000	350	150	425	11	2980×1715×2410
160/3200	1600	3200	2550	350	150	425	11	3750×1715×2450
160/4000	1600	4000	3200	350	190	450	11	4550×1715×2730
160/5000	1600	5000	4000	350	190	450	11	5100×1570×2900
160/6000	1600	6000	4500	350	190	450	11	6100×1570×3010
200/3200	2000	3200	2600	350	240	460	11	3750×1815×2715
