Double Screw Extruder Three Layers Polyethylene Air Bubble Film Making Machine

Product Description

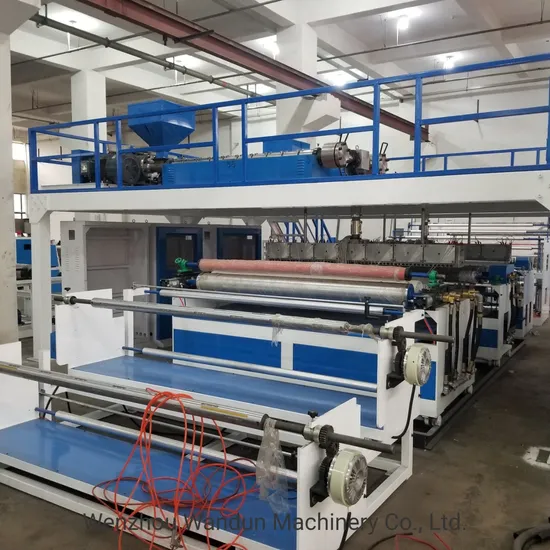

3-layer air bubble film machine (2+1 extruders)
Product Introduction:
1. Main parts: 3 Extruders, Control Panel, Bubble forming section, Winder;
2. To produce 2 layers or 3 layers air bubble film (PE front layer + bubble layer + base layer);
3. Each layer is under individually control, can have different thickness & material formulation and color;
4. Film width from 1,000mm to 3,000mm;
5. Screw L/D ratio is 1:30, it adopts special mixing function and high plasticizing capacity design, with good plasticization, good mixing effect and high output;
6. The bubble forming cylinder adopts special internal circulation chilled water design to ensure perfect bubble forming effect under high speed operation.
Mechanical Transmission Diagram & Bubble Structure
Main Technical Parameters:

Model	WT100-3T	WT120-3T	WT160-3T	WT200-3T	WT250-3T	WT300-3T
Max width mm	1000	1200	1600	2000	2500	3000
Screw diameter mm	55/55/55	55/55/55	65/65/55	75/75/65	85/85/75	90/90/80
Main motor power kw	15/15/15	15/15/15	22/22/15	30/30/22	37/37/30	37/37/30
Capacity Kg/hr	65-135	85-140	100-180	160-230	180-270	200-290
Line speed M/hr	800-1800	800-1800	800-1800	800-1500	800-1500	800-1500
Heating power kw	83	83	95	112	143	150
Running power kw	47	49	65	80	90	98
Total power kw	137	141	177	232	282	302
Raw material	LDPE/LLDPE/ Recycle material	LDPE/LLDPE/ Recycle material	LDPE/LLDPE/ Recycle material	LDPE/LLDPE/ Recycle material	LDPE/LLDPE/ Recycle material	LDPE/LLDPE/ Recycle material
Machine Weight kg	7700	8500	9500	10700	12700	13300

Q1. What is your terms of packing?
A: The normal package is making a pallet to protect the machine at the bottom and wrap the whole machine with plastic film packing. If export to EUROPEAN countries, the wooden box will be fumigated. we use PE film for packing or pack it according to customers special request.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
