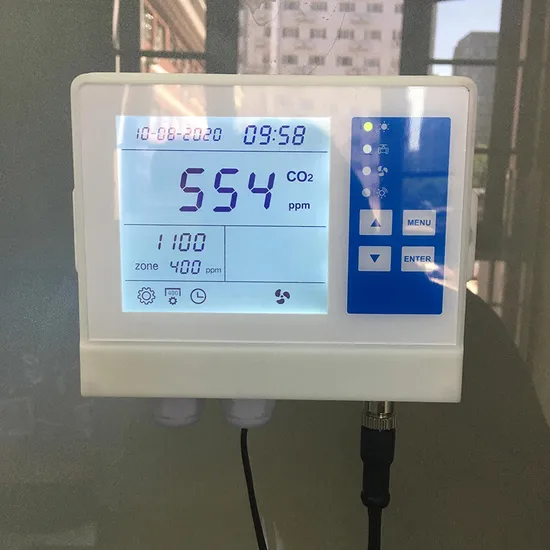

Split Carbon Dioxide Sensor Grow Tent CO2 Controller 10000 Ppm

Product Description

This SA1600P CO2 monitor and controller offers a simple way to control, monitor and display the CO2 levels in real-time. Our CO2 monitors help to diagnose the PPM of CO2 in the air and CO2 controllers are capable of maintaining the optimal level of CO2 in your grow area by sensing the PPM of the ambient air then turning your CO2 generator/regulator on and off as needed. The co2 sensor is designed for indoor carbon dioxide concentration measurement and respective air capacity regulation through the control output signal to the co2 valve. Air capacity control based on CO2 concentration is an efficient energy saving solution. It can use American standard special plug, use alternating current through wall socket board and control other connected social security, such as solenoid valve or exhaust fan of carbon dioxide cylinder. Or use European standard power plug wire to control the connecting equipment.
Split Carbon dioxide sensor grow tent CO2 controller 10000 ppm
Specification for this co2 controller
Large LCD display, Clear display contents for time, date, co2 value reading, center value zoom, working time, interval time and different menu. Dual Channel Low Drift NDIR Sensor precisely reads CO2 ppm levels, high accurate. Auto calibration With light sensor, and the switch to control photosensitive sensor. The device would shut off when the lights go off and turn on automatically when the lights on Glass panel with touch button operation, simple and fashionable, easy to use and setup CO2 controller Fully customizable ppm deadband and CO2 setpoint allow flexibility in programming, can set the center value of CO2 and zone value easily to keep the growing tents environment at a certain range of CO2 value by controlling the co2 generator's valve. The remote co2 sensor with light sensor is designed to be waterproof and mounted on the wall inside a closing environment of growing tents with 5 meters cables to connect with the outside main CO2 controller for users to operate easily outside. Real time display of current CO2 concentration Simple carbon dioxide area value setting, control the switch of output power supply Simple working time setting Main controller are with backlight function, can be used in the dark Application for this split Carbon dioxide controller : Carbon dioxide monitoring in factories, workshops, greenhouses, clean rooms and other industries and agriculture. Family, villa, office building, conference room, classroom and other places need ventilation control and environmental quality monitoring. Ventilation control and environmental quality monitoring of hotels, exhibition halls, hospitals, shopping malls, bars, restaurants, airports, railway stations, entertainment halls, cinemas and other public places. Production and use of carbon dioxide gas units
Technical datasheet

Model	1600PRO
Measured range	(0-10000ppm ) optional
Accuracy	0-3000ppm ±50ppm+5%reading ≥ 3000ppm ±50ppm+7%reading
Warm up time	30s (cod start) @ 25ºC
Respond time	63% step changes < 2 min Or 90% step changes <4.6min.
Operating temperature	32ºF--122ºF ( 0ºC- 50ºC)
Storage temperature	14ºF--140ºF (- 10ºC- 60ºC)
Operating & storage humidity	5-95% (non condensing)
Instrument size	166 X 45.5 X122 mm
Sensor detection rod	50 X 34.5 X 130mm
Weight
Power	AC100-240VAC
Output socket load	5A@ 250VAC (10A@120VAC )

Product detailed photo:

---
