Low Noise Mobile Rockbreaker Bucket Excavator Machine Underground Mobile Mining Equipment

Product Description

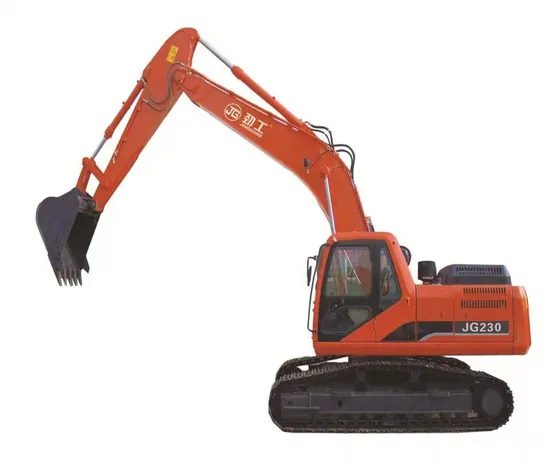

JG230L Excavation Construction Trackhoe Earthmoving Diggers 22 Ton Wheel Excavators for sale in Thailand, Laos (customizable)

SPECIFICATIONS OF JG230L Excavation Construction Trackhoe Earthmoving Diggers 22 Ton Track Crawler Excavators (CUSTOMIZABLE)
RANGE OF OPERATION			Boom length				5700mm
			Arm length				2900mm
			Maximum digging radius				9873mm
			Minimum turning radius				3560mm
			Maximum digging depth				6592mm
			Maximum vertical mining depth				3929mm
			Maximum digging height				9616mm
			Maximum unloading height				6830mm
			The radius of the end of gyration platform				2794mm
DIMENSION			(Length*width*height) travel position				9600*2990*3000mm
			Axle base				3635mm
			Track Gauge				2400mm
			Width Of Crawler				600mm
			Total width of the car				2990mm
			Total length of walking mechanism				4440mm
			The total width of belt off				2980mm
			Ground clearance of counterweight				1096mm
			Min ground clearance				475mm
TECHNICAL PARAMETERS			Angle of rotation				360°
			Machine weight				22300kg
			Engine model				IsuzuU
			Rated Power				128.5KW
			Rotary speed				10.7min
			Walking speed(high/low)				5.9-3.2km/h
			Ground specific pressure				43.5kpa
			Climbing ability(%)				70%
			Digging force				77.4KN(standard)/81.3KN(turbocharged)
			Volume Of Bucket				1.2m3
			Main pump				Kawasaki(Japan)
			Control valve				Parker
			Travel motor and swing motor				Doosan(korea)

Fujian Quanzhou Jingli Engineering & Machinery Co., Ltd is a China Leading pioneer in R&D small scale excavator especially wheel excavator, grab excavator, railway maintenance excavator, sugarcane harvester, integrating design, development, production and sales of equipment and machinery, equipped with various types of imported large-scale processing equipment,continuously develops new products. Passed IS09001 and CE certification, own more than 100 patent certificates.
Especially can customize products according to customer needs namely customized product available, this is one of our competition advantages.
The "Jingong" products are suitable for many situations, such as road & transportation, cities, municipal administration, gardens, farmland, water conservancy, agriculture, grapple loading, railways, etc.. Already exported to Southeast Asia, Africa and other countries, and have been widely praised at home and abroad.
Products include:
1. Engineering machinery:
wheel excavators;
crawler excavators: such as JG230L Excavation Construction Trackhoe Earthmoving Diggers 22 Ton Track Crawler Excavators
2. Forestry machinery:
log (sugarcane,bamboo etc.) grapple loader;
multi-functional transfer machines;
3. Harvesting machinery:
whole stalk type sugarcane combine harvesters;
4 Railway machinery:
railway sleeper changing machine;
railway ballast under cutter machine;
railway ballast tamping machine;
railway material leveling machine;
railway screening machine;

---
