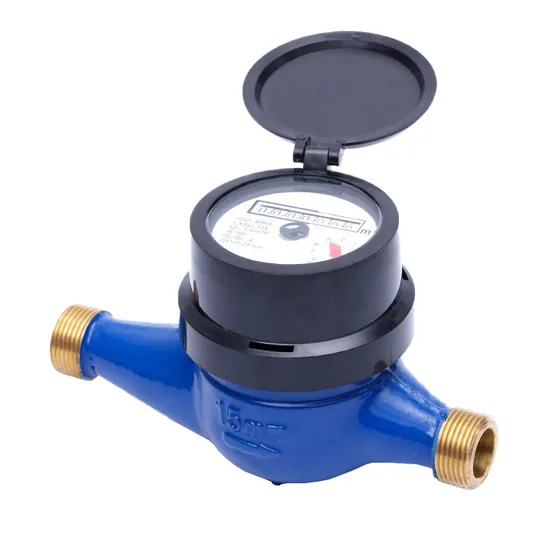

Multi Jet Brass Water Meter

Product Description

Multi jet, Dry-dial
Material body: Brass.
Sizes: DN15 to 20mm, (1/2" - 3/4"), Available for cold water (30°C), hot water(90°C)
Accuracy: ISO 4064 Class B Standard
Universal use. Easy for interchange & maintenance
MAIN TECHNICAL DATA

Meter size Dia DN (mm)	Class	qs Overload Flow	qs Nominal Flow	qs Transitional Flow	Qmin Min Flow	Min Reading Lectura	Max Reading Lectura
		m3/h		1/h		m3
15	A	3	1.5	150	60	0.0001	99999
	B			120	30
20	A	5	2.5	250	100	0.0001	99999
	B			200	50

INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)

DIMENSIONS AND WEIGHT

Meter size Dia DN (mm)	Length	Width	Height	Connrcting Thread D	Weight Kg
	mm
15	165	80	102	G3/4B	1.1
20	190	80	105	G 1B	1.4

WORKING CONDITION
Water temperature:≤40ºC for cold water meter
Water temperature:≤90ºC for hot water meter
Working pressure:≤1.6Mpa

---
