Aluminium Arch Windows and Doors CNC Bending Machine

Product Description

Product Description

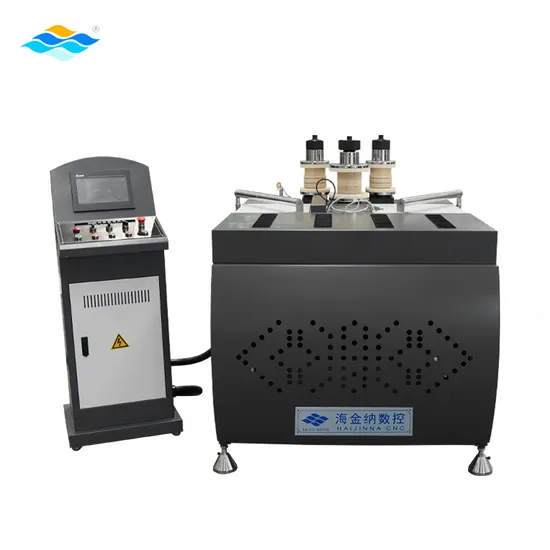

YH3-S30 is a 3 rollers cnc arch bending machine which is used in aluminum windows and doors,LED track rail or other light metal profile bending.
Standard Features:
Applicable material:aluminum,light metal profile. Automatic positioning and feed. Curved shapes can be circles, semicircles, arcs, ellipses. Hydraulic feed system. Stepless speed regulation of three rollers, the system automatically compensates for the difference in linear speed between the inner circle and the outer circle. HMI is simple and easy to understand. The machine needs to be used with the molds to prevent deformation, scratches and wrinkles of the profile.
Product Parameters

Model	YH3-S30
Power supply	380V/50Hz
Total power	6Kw
Rotation rate	1-8r/min
Thrust	30T
Feed stroke	0-220mm
Repeatability	<=0.2mm
Max.profile width	150mm
Roller shaft diameter	65mm
Min.bending radius	250mm
Weight	1000kg
Dimension	1500*1300*1300mm

Detailed Photos

Company Profile
HISENA specializing in production and selling UPVC and aluminum doorsand windows manufacturing machines.Our company is located in Jinan, China. We have professional team of 50staff in R&D, production, marketing and after-sales service.The greatest features of our machines are high quality, strong durabilityand stability, and we offer the best price/performance ratio without sacri-ficing quality.We provide multiple solutions to meet the different needs of customersand also we support the customization of equipment.HISENA has obtained lS0 9001,CE certificate, more than 10 patent cer.tificates, and high-tech enterprise certificate. Taking the customer expe.rience as the center, HISENA constantly updates the interactive experi-ence of machines and improves the use of operating procedures.The perfect pre-sales and after-sales service has won the unanimoustrust of many customers at home and abroad.

---
