FRP/GRP tank filament winding machine is mainly used for making FRP GRP Fiberglass tanks, suchas
FRP/GRP horizontal tanks, FRP/GRP vertical tanks, frp fuel tanks, ect.
The key elements such as the transducer, servo system and photoelectrical encoder are from siemens,
Germany; The industrial control computer is made by Yanhua Corporation, Taiwan, showing the
chineseideograph chrominance, operating easily; After the parameters inputted into the computer, it can
befinished the relative design of winding linearity automatically. The combined movements of the mainaxle
and the carriage controlled by the computer, conforms the winding rules, the technical parametersand its
inner quality have reached advanced level in China,
FW-4000 7/8 Computer Controlled Winding Machine
The main components such as transducer, servo system, photoelectric encoder are made by Siemens of
Germany. The industrial control computer is made by Taiwan Yanhua Company, which presents the ideal
chromaticity in China and is easy to operate. After the parameters are inputted into the computer, the relative
design of winding linearity can be completed automatically. The combined movement of spindle and
computer-controlled slider conforms to the rules of winding, and the technical parameters and its internal
quality reach the domestic advanced level. The attributes are as follows.
1.Diameter range:DN600~DN4000mm
2.Maximum length:12000mm
3.Winding angle:45°<A<90°
Total output:10kw4,
5. Positioning tolerance:<lmm
6. Maximum width of roving seat:150mm
7.Productivity:500kg/hour

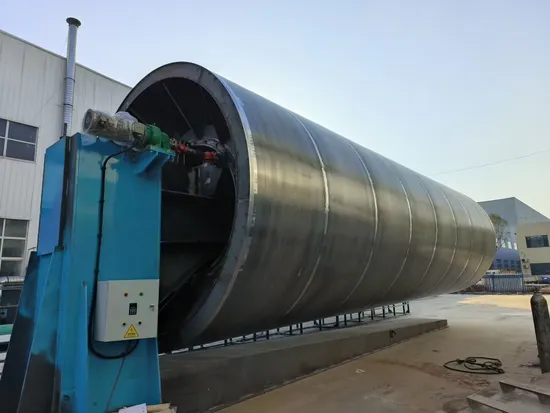

Large on-site winding machine
Tank diameters exceeding DN 4000 mm are limited by transportability, which is a difficult issue between customers
and contractors. In order to meet the requirements of the ordering party, we have developed this large on-site winding
machine kit. The set is of composite construction can be assembled or disassembled. You can transfer the set to the
client site. The set is assembled next to the foundation of the large tank according to the client's requirements. After
that you can finish a big tank.
1.FW-15000 Computer-controlled horizontal field winding machine
The main features of this equipment are.
Expandable maximum diameter:15000mm
2. Maximum length that can be coiled:12000mm
2.3 Diameter range:DN4000~DN15000mm
2.4 Maximum torque:68350N-m
2.5 Total output:18.6kw
2.6 Maximum width of roving seat:1680mm
2.7Productivity:550kg/hour
Vertical on-site winding machine
Restricted by the transportability, the tanks with a diameter greater than DN4000mm become a difficult point between the ordering party and the ordering party. In order to meet the requirements of the ordering party, our company developed this set of large-scale on-site winding machine, which is a combined structure can be assembled or disassembled, and the complete set can be transported to the customer's site. According to the customer's requirements, the complete set of equipment is assembled next to the foundation of the large tank, and then the assembly of the large tank body can be completed.
1.FW-15000 computer controlled vertical field winding machine
The main features of this equipment are as follows.
2.1 Maximum winding diameter:15000mm
2.2 Maximum winding length:12000mm
2.3 Diameter range:DN4000~DN15000mm
2.4 Maximum torque:68350N-m
2.5 Total power:18.6kw
2.6 Maximum width of roving plate:1680mm2.7 Productivity:550kg/h
2.VFW-25000 Computer-controlled Vertical Field Winding Machine
1.General VFW-25000 computer-controlled vertical on-site winding machine is a large diameter advanced winding machine (hereinafter referred to as the winding machine) developed by our company by absorbing foreign advanced technology. It is controlled by computer and specially used for in-situ winding of large diameter FRP tanks. This machine can produce FRP tanks with diameters ranging from 4m to 25m with suitable mandrels. The control centre of this machine is an industrial computer made in Taiwan. After inputting the parameters of the winding product, the computer can automatically complete the design of the tank linearity and control the combined movement of mandrel rotation and carriage shift. The glass fibres soaked in resin are perfectly aligned on the liner. The winder combines technology and science, such as mandrel rotation, carriage movement and winding roving layout, all of which are precisely controlled by computer software. The FRP products wound by this machine are widely used in chemical, petroleum, beer and other industries. Parameters of winding machine Range of winding diameter: 4m-25m Maximum height of each section: 6m (Note: If more than 6m, multiple sections can be configured) Angle of winding: 60°-90
Maximum mandrel speed: 4.6rpm Woven roving: 70*.
Productivity: 500 kg/hr*.
*Note: Productivity and number of strands are based on roving quality.
