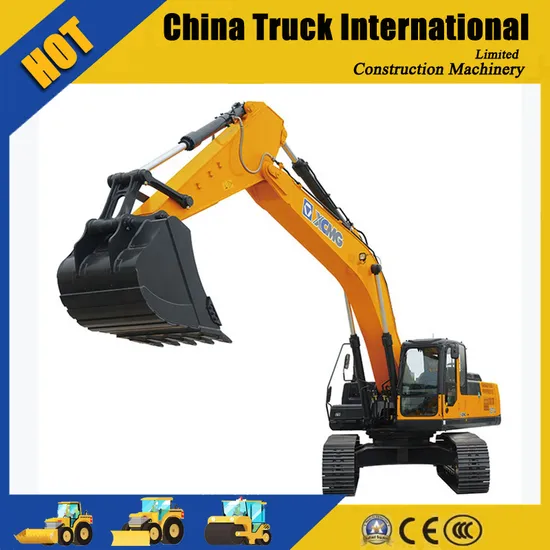

Excavation Machinery Backhoe Digger XE470C with Cheap Price Specification:
| | | Unit | Parameters |
| Model | Operating weight | kg | 46100 |
| Bucket capacity | m³ | 2.1-2.5 |
| Engine | Engine model | / | Cummins QSM11 |
| Direct injection | / | √ |
| 4×Strokes | / | √ |
| Water cooling | / | √ |
| Turbocharging | / | √ |
| A/A Air-air intercool | / | √ |
| Cylinders | / | 6 |
| Output power of engine | Kw/rpm | 250/2000 |
| Max.torque/engine | N.m/rpm | 1790/1400 |
| Displacement | L | 11 |
| Mian pertormance | Travel speed | km/h | 5.4/3.2 |
| Slewing speed | r/min | 9 |
| Gradient capability | ° | ≤30° |
| Ground pressure | kPa | 82.7 |
| Digging capacity of tcuket | kN | 284 |
| Digging capacity of tcuket rod | kN | 236 |
| Max.traction | kN | 338 |
| Hydraulic system | Main pump | / | Tow plunger pumps |
| Rated flow of main pump | L/min | 2×360 |
| Pressure of main safety valve | Mpa | 31.4/34.3 |
| Pressure of traveling system | Mpa | 34.3 |
| Pressure of swing system | Mpa | 28.4 |
| Pressure of pilot system | Mpa | 3.9 |
| Oil volume | Fuel tank capacity | L | 650 |
| Hydraulic tank capacity | L | 360 |
| Engine oil volum | L | 38 |
| Apperance size | A Total length | mm | 12032 |
| B Total width | mm | 3580 |
| C Total heigth | mm | 3842 |
| D Width of rotary table | mm | 2950 |
| E Length of track | mm | 5220 |
| F Total width of chassis | mm | 3580 |
| G Width of track | mm | 600 |
| H Wheelbase of track | mm | 4180 |
| I Track gauge | mm | 2392/2890 |
| J Counterweight ground clearance | mm | 1360 |
| K Min.ground clearance | mm | 703(Tooth height not included) |
| L Min.tail swing radius | mm | 3665 |
| Working scope | A Max.digging height | mm | 10675 |
| B Max.unloading height | mm | 7409 |
| C Max.digging depth | mm | 7337 |
| D Digging depth at the range of 8feets horizontally | mm | 7177 |
| E Max.vertical digging depth | mm | 5225 |
| F Max.digging radius | mm | 11631 |
| G Max.swing height | mm | 4909 |
| Standard configuration | Boom length | mm | 7060 |
| Length of bucket rod | mm | 2900 |
| Bucket capacity | m³ | 2.2Rock bucket |
| Optional counfiguration | Boom length | mm | 7060 |
| Length of bucket rod | mm | 3380/2500 |
| Bucket capacity | m³ | 2.1 |
| | | 2.3Rock bucket |
| | | | 2.5Earthmoving bucket |
