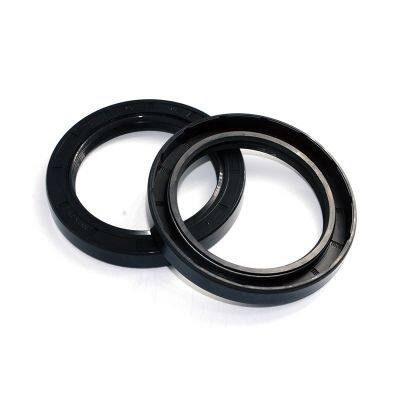

Skeleton oil seals, also known as framework oil seals, play a crucial role in various mechanical systems by preventing the leakage of fluids such as lubricating oils. Their application spans across multiple industries, from automotive to industrial machinery. This article delves into the working principle of skeleton oil seals and their diverse applications.
Sealing Principle
The primary function of a skeleton oil seal is to isolate the components that need lubrication from the output components, preventing the lubricating oil from leaking. This is achieved through a combination of materials and design. The seal consists of a flexible sealing lip made from materials like nitrile rubber or silicone, and a rigid skeleton, usually made of steel, that provides structural support. The oil film between the sealing lip and the shaft is critical. It acts as a fluid lubricant, reducing friction and wear.
The skeleton oil seal's effectiveness hinges on the thickness of this oil film. If the film is too thick, oil leakage can occur; if too thin, dry friction may result, causing wear on both the seal and the shaft. Therefore, proper installation and maintenance are essential to ensure the oil film is optimal and the seal operates effectively.
Applications
Skeleton oil seals are widely used in rotating and reciprocating shafts in various machinery. They are particularly beneficial in automotive engines, gearboxes, and axles, where they help maintain the integrity of lubricants and prevent contaminants from entering. Additionally, these seals find applications in industrial equipment, such as pumps, compressors, and hydraulic systems, where they ensure smooth operation by keeping the lubricant within the system and dirt out.
One significant advantage of skeleton oil seals is their resistance to wear and tear, making them suitable for demanding environments. They also help in extending the life of machinery by maintaining optimal operating conditions and reducing the need for frequent maintenance.
Maintenance and Troubleshooting
Regular maintenance is crucial for the longevity of skeleton oil seals. Inspections should be conducted to check for signs of wear, damage, or leakage. Common issues include improper installation, excessive shaft runout, or inadequate lubrication. Addressing these problems promptly can prevent further damage to the seal and the machinery.
When troubleshooting, it’s essential to identify the root cause of any issues. For instance, improper installation can be rectified by ensuring the seal is perpendicular to the shaft. In high-temperature environments, materials like fluorine or silicone rubber should be used to prevent degradation.
The skeleton oil seal is a testament to engineering ingenuity, combining material science with mechanical design to solve the problem of fluid containment and contamination prevention. As technology advances and machinery becomes more sophisticated, the role of these seals will continue to evolve, with innovations aimed at improving performance and extending service life. The ongoing development of new materials and designs will undoubtedly enhance their applications, making skeleton oil seals an indispensable component in modern engineering and manufacturing.
>>
