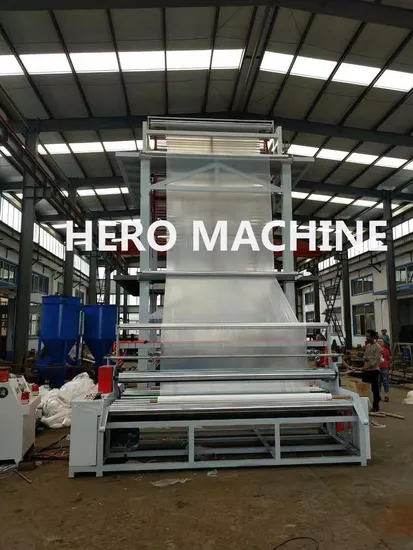

High Quality PE Stretch Blown Film Extruder Machine Film Blowing Machine Taiwan

Product Description

HERO MACHINE---SINCE 1985
Add:Shangwang Industry Area Ruian Wenzhou,China


Website: herowu.en.made-in-china.com

Characteristics:
1. Die head is lauer type spiral mandrel, continuous 360, rotation.
2. Screen pack changer design is ational convenience, reliable, safe in operation.
3. Various functuonal parts may be installed to the lies., such as length counting device, verdtical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.
Use: The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home. The lines can be blown cotinuous 1200/1300/1500mm in fold width 0.08mm in the thickness packaging films, film has good insulation, for instance holding temperature, antihu-MID, antibreeze, anti-rain, anti-rost, insulation oxygen, oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.
Main Technical Variables
Model SJ-45*3/FM1000 SJ-50*3/FM1200 SJ-55*3/FM1500
Screw Diameter Φ 45mm Φ 55mm Φ 55mm
Screw Ratio LD30: 1 LD30: 1 LD30: 1
Screw Speed 15-150r/min 15-150r/min 15-150r/min
Main Motor Power 11Kw*3 15Kw*3 18.5Kw*3
Extrusion Output(Single) 30kg/h 40kg/h 50kg/h
Range of Die Φ 130 Φ 180 Φ 130 Φ 250 Φ 130 Φ 300
Singie-sided Thickness of Film 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm
Max. Folding Width of Film 1000mm 1200mm 1500mm
Electric Total Capacity 76Kw 88Kw 102Kw
Weight of Machine 4200kg 5300kg 6200kg
Overall Dimension 6600*4100*5000mm 6800*4300*6000mm 7000*4800*6800mm

Model	SJ-45*3/FM1000	SJ-50*3/FM1200	SJ-55*3/FM1500
Screw Diameter	Φ 45mm	Φ 55mm	Φ 55mm
Screw Ratio LD30	LD30: 1	LD30: 1	LD30: 1
Screw Speed	15-150r/min	15-150r/min	15-150r/min
Main Motor Power	11Kw*3	15Kw*3	18.5Kw*3
Extrusion Output(Single)	30kg/h	40kg/h	50kg/h
Range of Die	Φ 130 Φ 180	Φ 130 Φ 250	Φ 130 Φ 300
Singie-sided Thickness of Film	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Max. Folding Width of Film	1000mm	1200mm	1500mm
Electric Total Capacity	76Kw	88Kw	102Kw
Weight of Machine	4200kg	5300kg	6200kg
Overall Dimension	6600*4100*5000mm	6800*4300*6000mm	7000*4800*6800mm

All sizes and specifications can be customized. Welcome to contact us!
