US$25,000.00-27,000.00
|
1 Set
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Max. Swing Dia. Over Bed
500mm
Max. Swing Dia. Over Slide
250mm
Max. Turning Length
500mm
Spindle Max. Bar Through Dia.
51mm
Spindle Motor Powerthrough Dia.
11kw
Spindle Chuck Size
8′′/10′′chuck
Repeat Positioning Accuracy(X/Z)
0.003mm
Tool Turret Type
10t Hydraulic-Servo
Transport Package
Plywood Case/Steel Pallet
Specification
2500*1500*1700mm
Production Capacity
480 Unit/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description

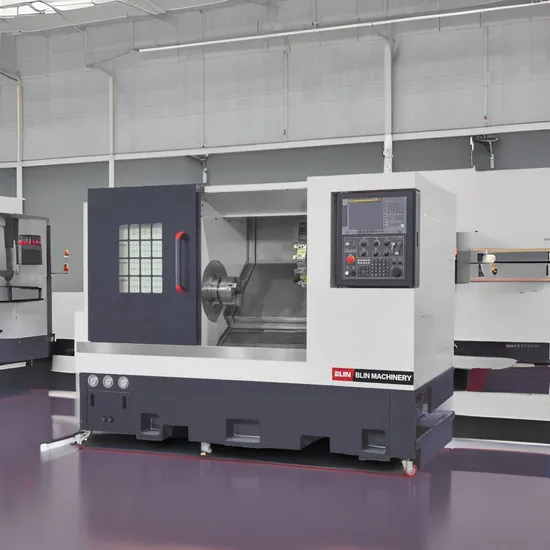

Automatic slant bed cnc turning lathe
- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt 45°integral slant bed design
- Adopt ROLLER type linear guideway,super high rigidity
- Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
- Adopt especial structure programmable tailstock, tailstock quill not move, whole tailstock body driven by hydraulic cylinder on linear guideway
Mount 10T hydraulic-servo tool turret
Details:
| Item | Specification | Unit | BL-H50Q |
| Capacity | Chuck size | / | 8''/10'' |
| Max. swing dia. over bed | mm | Φ500 |
| Max. swing dia. over saddle | mm | Φ250 |
| Max. turning length | mm | 500 |
| Max. turning dia. | mm | Φ400 |
| Spindle | Spindle bore | mm | Φ62 |
| Spindle end type | / | A2-6 |
| Spindle speed | rpm | 3500 |
| Max. bar through dia. | mm | 51 |
| Spindle motor power | kw | 11 |
| X/Z axes | X/Z axes linear guideway type | / | ROLLER type |
| X axes travel | mm | 210 |
| Z axes travel | mm | 500 |
| X/Z axes rapid moving speed | m/min | 30 |
| Tool turret | Tool turret type | / | 10T Hydraulic-servo |
| Toolshank size | mm | 25×25, Φ32 |
| Tailstock | Tailstock quill taper | / | MT5# |
| Tailstock body max. travel | mm | 450 |
| Accuracy | Positioning accuracy(X/Z) | mm | ±0.005 |
| Repeat positioning accuracy(X/Y/Z) | mm | ±0.003 |
| Others | Overall size | mm | 2500×1500×1700 |
| N.W. | kg | 3800 |
Main parts list:
| Item | Brand |
| Spindle unit | TAIWAN-KENTURN |
| Tool turret | TAIWAN-MYKUN |
| Ball screw | TAIWAN-HIWIN/PMI |
| Ball screw bearing | GERMANY-FAG |
| Linear guideway | TAIWAN HIWIN/PMI |
| Lubrication system | JAPAN-HERG |
| Rotary oil cylinder&chuck | TAIWAN-AUTOGRIP |
| Main electricity parts | FRANCE-SCHNEIDER |
Standard configuration: - SIEMENS 808D ADVANCED CNC controller
- Hydraulic chuck
- Hydraulic-servo tool turret
- Hydraulic tailstock
Optional configuration: - SYNTEC/SIEMENS 828D/FANUC CNC controller
- Automatic chip conveyor
-Tool setting probe
