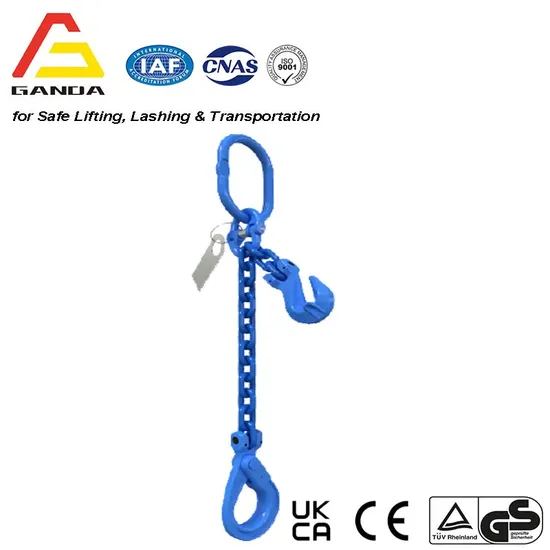

1 Leg G80 G100 Chain Sling with Clevis Sling Hook for Lifting Goods CE, GS En 1677

US$12.00-500.00 50 Sets (MOQ)

Basic Info.

Model NO.

1 Leg Chain Sling

Type

Chain Sling

Material

Steel

Lifting Capacity

1.12t to 32t

Fixed Form

Master Link + Hook

Lifting Eye Type

Master Link

Rope Core Type

G80 G100 Lifting Chain

Power Source

Manual

Shape

1 Leg, 2 Legs, 3 Legs, 4 Legs

Certification

GS, CE, ISO 9001

Sling Color

Self Color or Painted

Standard

En 818-2

for

Lifting Chain Sling, Chain Hoist, Lever Hoist

Transport Package

Steel Drum Then Pallet

Specification

4MM to 32MM

Trademark

GANDA or OEM

Origin

China

HS Code

7315820000

Production Capacity

10000000m/Year

80 CHAIN FOR CHAIN HOIST AND LEVER HOIST, BLACK FINISHED. EN 818-7

NOMINAL SIZE MM	MATERIAL DIANETER TOLERANCE	PITCH		WIDTH		LENGTH FOR 11 X PITCH		WLL	PROOF FORCE	MIN. BREAKING LOAD
		MM	TOLERANCE	INTERNAL MIN.	EXTERNAL MAX.	LENGTH FOR 11 X PITCH		WLL	PROOF FORCE	MIN. BREAKING LOAD
		MM	TOLERANCE	INTERNAL MIN.	EXTERNAL MAX.	MM	TOLERANCE	T	kN	kN
4	+/-0.2	12	0.25	4.8	13.6	132	0.6	0.5	12.6	20.1
5	+/-0.2	15	0.3	6	17	165	0.8	0.8	19.6	31.4
6	+/-0.2	18	0.35	7.2	20.4	198	1	1.1	28.3	45.2
7	+/-0.3	21	0.4	8.4	23.8	231	1.1	1.5	38.5	61.6
8	+/-0.3	24	0.5	9.6	27.2	264	1.3	2	50.3	80.4
9	+/-0.4	27	0.5	10.8	30.6	297	1.4	2.5	63.6	102
10	+/-0.4	30	0.6	12	34	330	1.6	3.2	78.5	126

ULTIMATE ELONGATION: MIN. 10%
MARK: T 8 AND BATCH NO.
GRADE 80 CHAIN FOR CHAIN SLING, BLACK FINISHED. EN 818-2

NOMINAL SIZE MM	MATERIAL DIANETER TOLERANCE	PITCH			WIDTH		WLL	PROOF FORCE	MIN. BREAKING LOAD
		MM	MAX. MM	Min. MM	INTERNAL MIN.	EXTERNAL MAX.	WLL	PROOF FORCE	MIN. BREAKING LOAD
		MM	MAX. MM	Min. MM	INTERNAL MIN.	EXTERNAL MAX.	T	kN	kN
6	+/-0.24	18	18.5	17.5	7.8	22.2	1.12	28.3	45.2
7	+/-0.28	21	21.6	20.4	9.1	25.9	1.5	38.5	61.6
8	+/-0.32	24	24.7	23.3	10.4	29.6	2	50.3	80.4
10	+/-0.4	30	30.9	29.1	13.0	37.0	3.15	78.5	126
13	+/-0.52	39	40.2	37.8	16.9	48.1	5.3	133	212
16	+/-0.64	48	49.4	46.6	20.8	59.2	8	201	322
18	+/-0.9	54	55.6	52.4	23.4	66.6	10	254	407
20	+/-1.0	60	61.8	58.2	26.0	74.0	12.5	314	403
22	+/-1.1	66	68.0	64.0	28.6	81.4	15	380	608
26	+/-1.3	78	80.3	75.7	33.8	96.2	21.2	531	849
32	+/-1.6	96	98.9	93.1	41.6	118.0	31.5	804	1290

ULTIMATE ELONGATION: MIN. 20%
MARK: G80 AND BATCH NO.
