110kw Bx218 Wood Chipping Machine

Product Description

Product Description
Basic Introduction of Wood Chipper Shredder machine
Wood drum chipper machine is a kind of special machine to slice the wood for the production of high-quality wood chips.
It is a kind of advanced crushing machine based on the advantages of many other crushers.
It is developed by using the theories of lashing, shearing, impacting, grinding.
1. Mainly used to process various logs, log branch, veneer, bamboo, cotton stalk and other wood fiber into standard size chips. The chips could be used to produce particleboard, MDF, HDF, OSB, OSSB, pulp and paper making.
2. 1) Uniform chips. 2) Low noise. 3) No pollution. 4) Simple operation. 5) Convenient maintenance.

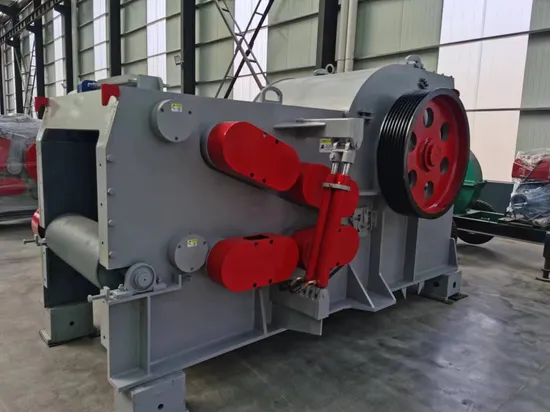

Product Pictures
Picture after complete installation
Parameters

Type	HX216	HX217	HX218	HX426	HX428	400AB	400CD
Rotor diameter/blade quantity	650mm /2-6	720mm /2-6	800mm /2-6	650mm /20	800mm /24	650mm/2-6	650mm/2-6
Input size (mm)	240*540	240*680	310x680	250x1250	310x1250	700*400	1000*400
Blade rotational speed (r/m)	590	590	650	600	650	610	610
Rate of feeding (m/min)	38	38	35-38	38	38	38	38
Wood chip length (mm)	Wood chip size normally from 2cm-6cm,we can adjust the size based on required,through:blade quantity,rotation,screen hole size… …
Capacity	5-10	7-12	9-13	8-10	10-15	5-9	7-12
Power (kw)	55 +3+4+5.5	75+3+3+5.5	110+5.5+3+5.5	90+5.5+5.5	110+7.5+7.5	90+5.5+7.5+4	110+5.5+7.5+4
Weight (t)	5.3	6.2	7.3	7.6	9.5	6.6	8.3
Size (m)	1.98*1.95*1.25	2.2*2.1*1.3	2.3x2.15x1.85	2.85x2.78x1.5	3.67x2.45x2.05	7*2.3*2	8.2*2.3*2

Control box
Certificate
Our workshop
Machine working sites
Disharged wood chip

---
