Product Introduction
The stainless steel filter element is a kind of filter material with high strength and overall rigidity, which is made of multi-layer metal sintered mesh, which is made of multi-layer stainless steel mesh after special laminated pressing and vacuum sintering. The pores are interlaced to form a uniform and ideal filtration structure.

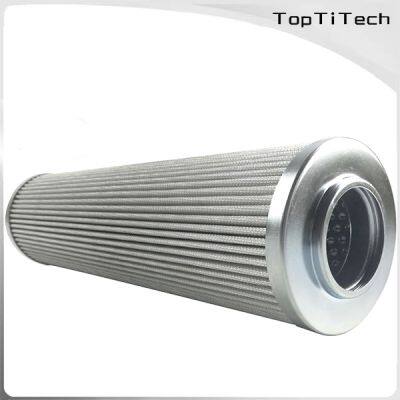

The stainless steel pleated filter element is folded by special stainless steel wire mesh. The pleated process makes the filter element have a large filtration area, high dirt holding capacity, and high flow rate. Each seal adopts argon arc welding process, has no leakage, and can be used in high-temperature and high-pressure filtration environments. The stainless steel filter element has excellent performance, and the filter element can be cleaned repeatedly.
Products Parameters
Main filter material: SS316、SS304、SS316L、SS304L
Main filter media: stainless steel fiber sintered felt and stainless steel woven mesh
Regular outer diameter: 25、30、35、50、60、63.5、65、100、150mm (customized)
Regular inner diameter: 25、30、35、50、100、150mm (customized)
Length: Generally 5", 10", 20", 30", 40" (customized)
Interface form: 222、226、215、M36、M28、M24、M22、M20 threaded interface
Maximum working temperature: ≤500℃
Filtration accuracy: 1-200um
Working strength: 0.1-30MPa
Processing: The sealing surfaces of the filter element are joined by an argon arc welding process, and the filter layer adopts multi-fold folding process to form a complete filter element without leakage and medium shedding.
Features
1. The precision filter element made of stainless steel has high porosity, excellent air permeability, low resistance, and low-pressure difference;
2. The stainless steel precision filter element's filter area and dirt-holding capability are both substantial after folding;
3. The high-temperature resistance, corrosion resistance, and suitability of the stainless steel precision filter element for high viscosity liquid filtering;
4. Effective renewal;
5. All-stainless steel construction; broad chemical compatibility;
6. Reusable after chemical, high temperature, and ultrasonic cleaning.
Applications
Environmental protection, petroleum, chemical, medical, high-temperature gas filtration, scientific research, metallurgy, food, machinery, and other sectors use stainless steel pleated filter elements extensively.
1. Filtration of various high-temperature and corrosive liquids in the petroleum and chemical sectors;
2. Filtration and purification of various polymer melts in the chemical fiber and film industries;
3. Thorough filtration for mechanical equipment of different hydraulic oils and lubricating oils;
4. In the pharmaceutical, biological, beverage, and other sectors, the clarification and filtration of various liquids.
Package and Shipment
1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.
2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
